Ace Backstage

Full Pocket/Standard Lid - Black

Model: 122SLBK
Products Variants:

LARGE CAPACITY: The Full Stage Pocket accomodates #PNL-100 Series Panels, #PSW-100 Series Panels, #PNL-120 Series Panels, and #PE Series Panels in an interchangeable multi-panel system making for easy custom configurations. Two (2) optional #PNL-100 Series Panels or one (1) optional #PNL-120 Series Panel will mount up to 12 "CONNECTRIX", Neutirk®, and/or Switchcraft® type connectors. Two (2) optional #PSW-100 Series Panels will mount up to 12 Switchcraft® type connectors.

DURABLE CONSTRUCTION: Welded steel construction of Full Stage Pocket Lid, Mounting Flange, and Pocket Body resist bending under even the most severe stage loads. The Lid and Mounting Flange is made from 1/8" (nominally 11 ga. (.120") CRS) thick steel while the Pocket Body is made from 16 ga. (.062") thick CRS steel.

SPRING LOADED HINGE PINS: Removable spring loaded hinge pins permit easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL) and custom application lids.

CABLE WAY SLOTS: Generous 3/8" x 8" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. A Cable Way Slot Closure channel closes the slot when not in use.

EASY INSTALLATION: Easy installation into 8.5" x 8.5" square cutout in stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations.

DECORATOR FINISHES: Scratch/wear resistant finish, oven cured powder coat electro-static applied inside and outside entire Full Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange as well as Solid Stainless Steel Lid and Mounting Flange with brushed finishes are also available by special order.

RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.

more
Please log in to see your price
Specification Sheet Specification Sheet

Related products

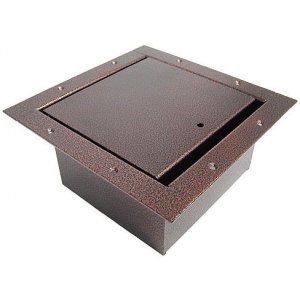

Model: 122SLCV
Please log in to see your price
List Price: $327.17

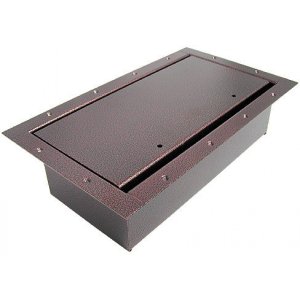

Model: 124SLCV
Please log in to see your price
List Price: $673.90

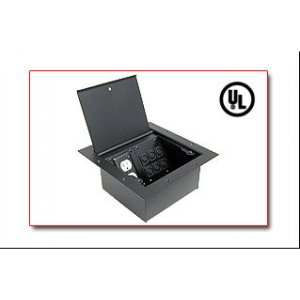

Model: 122CLCV
Please log in to see your price
List Price: $341.39

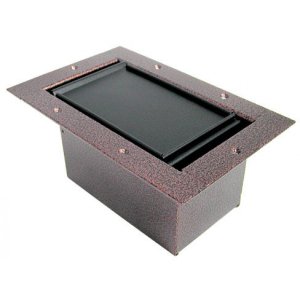

Model: 123CLCV
Please log in to see your price
List Price: $296.94

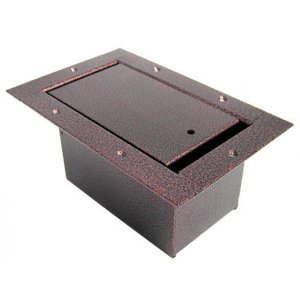

Model: 123SLCV
