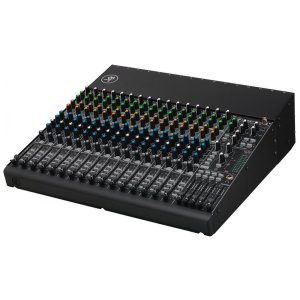

VLZ4 Series 16-Ch Compact Mixer

16-channel mixer featuring Mackie signature high-headroom/low-noise design

Improved RF rejection perfect for broadcast applications

Extended frequency response

Ultra-wide 60dB gain range

128.5 dB dynamic range

+22 dBu line input handling

Distortion under 0.0007% (20Hz – 50kHz)

Phantom power for condenser mics

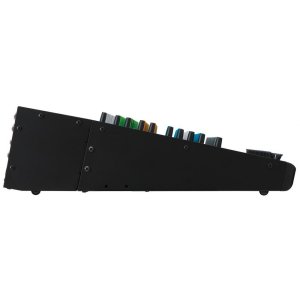

“Built-Like-A-Tank” rugged steel chassis with powder-coat finish

High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback

3-band EQ with sweepable midrange

High-resolution 12-segment stereo meters

18 dB/oct 75Hz low-cut filter on mic input channels

Multi-voltage power supply for worldwide use

60mm long-wearing log-taper faders

Sealed rotary control resist dust and grime

16 boutique-quality Onyx mic preamps

Phantom power for studio condenser mics

16 high-headroom line inputs with +4/-10 operation control

16 balanced inserts perfect for integrating outboard gear

4 aux sends, level, pan, solo and overload/mute LEDs on each channel

4 stereo returns, 8 direct outs and 4 group/bus outputs

Control room / phones multi-input source matrix

Rack-mountable design with three physical configurations via Rotopod accessory (sold separately)
