DBX

Stereo 2/3 Way, Mono 4-Way Crossover (TRS)

Brand: DBX
Model: 234S
UPC: 691991401282
Products Variants:

Mode switches for mono 4-way or stereo 2-way/3-way operation

Low frequency summed (subwoofer) output

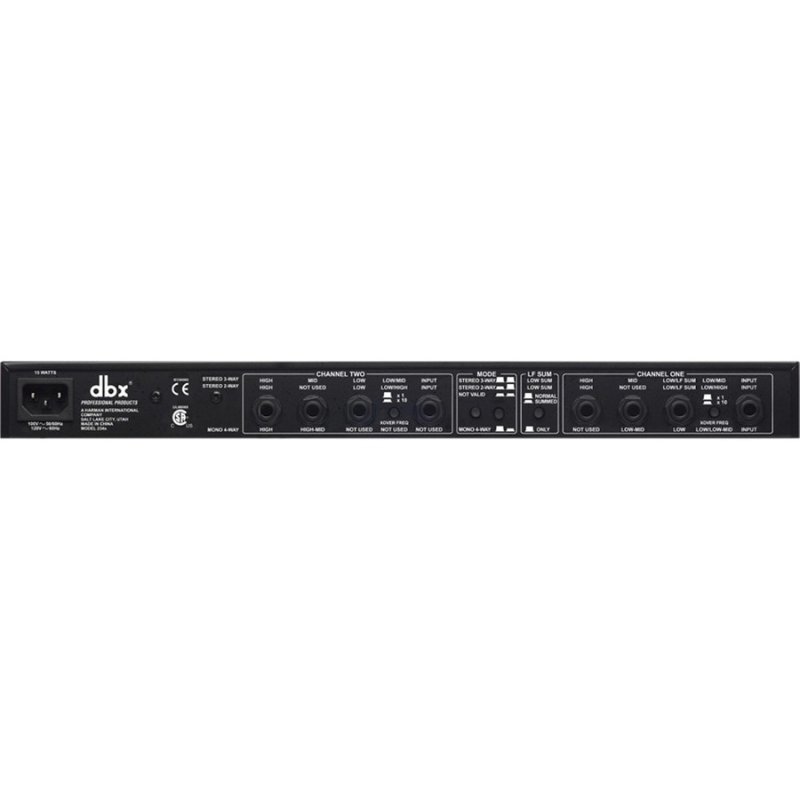

TRS differentially balanced ins and outs

x10 range switch on both channels

40Hz high pass (low cut) filter both channels

Phase reverse switch on all outputs

Individual level controls on all outputs

24dB per octave Linkwitz-Riley filters (the professional standard)

Stereo/Mono status LEDs indicate the selected mode

dbx® 2 year parts and labor as standard

CSA NRTL/C approved

CE compliant

more
Please log in to see your price

Related products

Model: 234XS
Please log in to see your price
List Price: $425.81
Model: 223XS
Please log in to see your price
List Price: $330.84
Model: CX310
Please log in to see your price
List Price: $339.99
Model: SX21
Please log in to see your price
List Price: $150.00
Model: ST-CX2
Please log in to see your price
List Price: $232.17
Model: SX45
Please log in to see your price
List Price: $150.00
Model: ST-CX2S
Please log in to see your price
List Price: $232.17
Model: 510
Please log in to see your price
List Price: $269.00

Customers who bought this product also purchased

Product Properties

  • Product Type
  • Crossover

Description:


,
SYSTEM PERFORMANCE

Bandwidth: 20Hz to 20kHz, +0/-0.5dB

Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB

Dynamic Range: > 106 dB, unweighted, any output

Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth

THD + Noise: < 0.004% at +4 dBu, 1 kHz
< 0.04% at +20 dBu, 1 kHz

Interchannel Crosstalk: < -80 dB, 20Hz to 20 kHz

Common Mode Rejection: Ref: +4dBu, 22kHz measurement bandwidth

Stereo Mode >94dB (Low Output)
>93dB (Mid Output)
>90dB (High Output)

Mono Mode: >94dB (Low Output)
>94dB (Low/Mid Output)
>92dB (High/Mid Output)
>88db (High Output)

POWER SUPPLY

Operating Voltage:100-120 VAC 50/60Hz; 120 VAC 60Hz 230 VAC 50/60Hz

Power requirements: 15W

Operating Temperature: 32°F to 113°F (0°C to 45°C)

PHYSICAL

Dimensions: 1.75" H X 6.9" D X 19" W (4.5cm x 17.5cm x 48.26cm)

Weight:4.0 lbs. (1.8 kg)

Shipping Weight:5.8 lbs. (2.6 kg)
