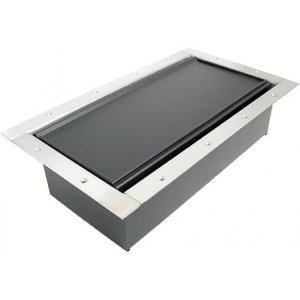

Double Wide Pocket/Std SS Lid - SS Bezel

Name: Double Wide Pocket/Std SS Lid - SS Bezel
SKU: 324SLSS

Brand: Ace Backstage

Model: 324SLSS

Products Variants:

Double Wide Pocket/Std SS Lid - SS Bezel

Double Wide Pocket/Carpet Lid - SS Bezel

CABLE WAY SLOTS: Generous 3/8" x 16" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. Two Cable Way Slot Channel Closures closes slot when not in use.

DECORATOR FINISHES: Scratch/wear resistant finish, oven cured powder coat electro-static applied inside and outside entire Double Wide Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange as well as Solid Stainless Steel Lid and Mounting Flange with brushed finishes are also available by special order.

DURABLE CONSTRUCTION: Welded steel construction of Double Wide Stage Pocket Lid, Mounting Flange, and Pocket Body resist bending under even the most severe stage loads. The Lid is made from 10 gauge (nominally (.135")) thick CRS steel, the Mounting Flange is made from 1/8" (nominally 11 ga. (.120")) CRS thick steel, and the Pocket Body is made from 16 ga. (.062") thick CRS steel.

EASY INSTALLATION: Easy installation into 16.8" x 8.5" rectangular cutout in stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations.

EXTRA LARGE CAPACITY: The Double Wide Stage Pocket accomodates #PNL-100 Series Panels, #PSW-100 Series Panels, #PNL-120 Series Panels, #PE Series Panels, and #FP3E Series Panels in an interchangeable multi-panel system making for easy custom configurations. Four (4) optional #PNL-100 Series Panels or two (2) optional #PNL-120 Series Panel will mount up to 24 "CONNECTRIX", Neutirk®, and/or Switchcraft® type connectors. Four (4) optional #PSW-100 Series Panels will mount up to 24 Switchcraft® type connectors.

RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.

SPRING LOADED HINGE PINS: Removable spring loaded hinge pins permit easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL) and custom application lids.
