Complete 3DME Active Ambient IEM System

Name: Complete 3DME Active Ambient IEM System
SKU: 3D-10000

Brand: ASI Audio

Model: 3D-10000

UPC: 850014560003

Products Variants:

Active Ambient technology provides controlled 3D ambience with full earphone isolation

Body pack has rechargeable Li-Ion battery and USB interface for programming and charging

Body pack incorporates rapid limiting of clipping-level signals sensed at multiple circuit points

Body pack provides ambient level up/down buttons, programmed either for step-wise action or pre-selected levels, for quick in-use adjustment of ambience level

Body pack provides LED indication of battery state-of-charge, charging status, and USB power

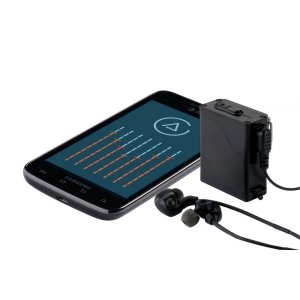

Compact bodypack processing unit combines a monitor mix with the ambient sound

Embedded binaural microphones capture full frequency range, full dynamic range natural ambience with accurate 3D directionality

Full-range drivers provide reference-quality sound without crossover distortions

Intuitive smartphone app sets multiple stored body pack processing options

Monitor Out jack provides for monitoring of the complete reproduced sound, including by the dBCheck

Patented active signal processing enables distortion-free ambience capture up to 135 dB-SPL

Please log in to see your price

Related products

PSM300 Series Professional IEM System (G20 band)

Model: P3TRA215CL-G20

Brand:Shure

Please log in to see your price

Select to compare

View

PSM®1000 Series Dual Rack Unit Transmitter

Model: P10T=-G10

Brand:Shure

Please log in to see your price

Select to compare

View

3DME BT Active Ambient IEM System

Model: 3D-10000BT

Brand:ASI Audio

Please log in to see your price

Select to compare

View

SHURE P10R+=-G10

Model: P10R+=-G10

Brand:Shure

Please log in to see your price

Select to compare

View

PSM900 Wired Bodypack Personal Monitor

Model: P9HW=

Brand:Shure

Please log in to see your price

Select to compare

View

Customers who bought this product also purchased

Product Properties

Acoustic Insertion gain
Off, -24 dB to +12 dB in 16 steps

Battery State-of-Charge Indication
Four LEDs, with flashing low battery warning

Bullet points
Active Ambient technology provides controlled 3D ambience with full earphone isolation

Body pack has rechargeable Li-Ion battery and USB interface for programming and charging

Body pack incorporates rapid limiting of clipping-level signals sensed at multiple circuit points

Body pack provides ambient level up/down buttons, programmed either for step-wise action or pre-selected levels, for quick in-use adjustment of ambience level

Body pack provides LED indication of battery state-of-charge, charging status, and USB power

Compact bodypack processing unit combines a monitor mix with the ambient sound

Embedded binaural microphones capture full frequency range, full dynamic range natural ambience with accurate 3D directionality

Full-range drivers provide reference-quality sound without crossover distortions

Intuitive smartphone app sets multiple stored body pack processing options

Monitor Out jack provides for monitoring of the complete reproduced sound, including by the dBCheck

Patented active signal processing enables distortion-free ambience capture up to 135 dB-SPL

Charge Time (fully depleted battery)
4 hours

Frequency Response
20 Hz – 20 kHz

Latency
0 (EQ disengaged), 350 µsec (EQ engaged)

Limiter Threshold
84 dBA to 105 dBA in 8 steps and Off

Limiter Type
Adaptive attack, average responding, frequency selective

Maximum Limiter Gain Reduction
20 dB

Maximum Output, 500 Hz
122 dB-SPL

Microphone Equivalent Input Noise
27 dBA-SPL

Microphone Input Overload
135 dB-SPL

Monitor Equivalent Input Noise
-104 dBV(A) (EQ disengaged), -101 dBV(A) (EQ engaged)

Monitor Input Impedance
10 kOhm

Monitor Sensitivity, 500 Hz
102 dB-SPL for -20 dBV (100 mVrms) input

Multiband EQ
+/-12 dB at 60, 140, 330, 770, 1800, 4300, 10000 Hz

Operating Time (from full charge)
>7 hours

Output Noise
20 dBA-SPL (EQ disengaged), 23 dBA-SPL (EQ engaged)

Description:

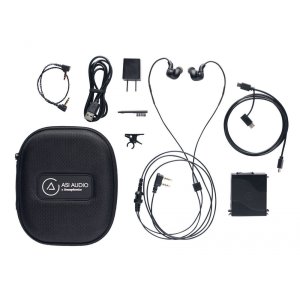

The IEM that is revolutionizing playing live. Hear live ambient room audio in your ears along with enhanced audio, safe limiting, and full EQ and levels control. All done with the ASI Audio App. In the box 3DME In-Ear Monitors 3 pairs eartips, S, M, L Bodypack with lithium ion battery Stereo jumper cable USB bodypack charging cable Programming cable Wall charger Carrying case Earpiece cleaning tool Shirt clip Tablet
