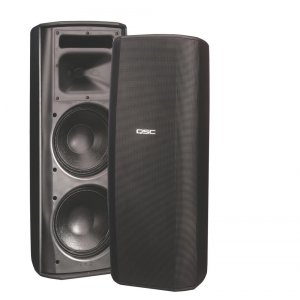

High Powered Series Dual 8" Surface Mount Speaker

The QSC AcousticDesign AD-S282H is a full range, surface mount loudspeaker with a sleek, contemporary styling that fits perfectly into multiple surroundings and applications including hotels, restaurants, convention facilities, and multimedia environments. The speaker incorporates the Advanced Directivity™ rotatable waveguide. Available in black or white, these weather resistant enclosures can be painted to match any specific décor.

The AD-S282H is a 2-way system housed in a ported enclosure made from injection molded, high-impact polystyrene. This enclosure incorporates two 8" weather-resistant, LF transducers with heavy-duty double roll cloth surrounds. These high output versions employ a 1" exit compression HF driver. The HF driver is coupled with QSC's unique Advanced Directivity rotatable waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its mounted orientation.

Configuration: Compact two way, ported enclosure

Low Frequency Transducer: Dual 8" high power, treated paper cone, 2" voice coil, neodymium magnet

High Frequency Transducer: 1" high output compression driver

Frequency Response (-6 dB): 80 Hz - 27.7 kHz

Useable Frequency Range (-10 dB): 60 Hz - 29.5 kHz

Nominal Coverage: 90° H x 60° V (-6 dB) (rotatable to 60° H x 90° V)

Connectors: Barrier Strip, (switchable: passive/active)

Weight: 27.7 lb (12.6 kg) net
