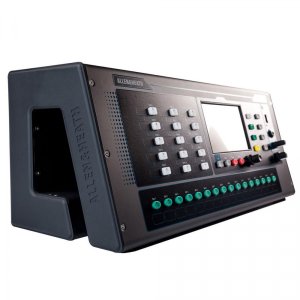

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into an uber-compact desk or rack mount format. Qu-Pac frees you to mix from your iPad, but the full functions of the mixer can also be accessed from the front panel and touchscreen.
With custom settings and Cat5 expansion up to 38 inputs, Qu-Pac provides a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint.
Touch Control
Qu-Pac’s 5 inch, 800 x 480, sixteen million colour Touchscreen and its dedicated data encoder form the heart of the Qu interface, providing super-fast, easy access to all settings. The user-friendly interface has been designed with clarity in mind. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.
The Qu-Control key brings up a fully customizable screen which gives access to channels and settings tailored to the user and application. Several ‘widgets’ can be assigned to the page, these include channel levels, mutes and assignment on/off switches and are arranged to suit the user requirement, for example as a source selection and level control of background music to one or multiple zones.
AnalogiQTM Preamps
Our AnalogiQ total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs. The AnalogiQ design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.
dSNAKETM
Qu mixers are self-contained, so if you’ve already got the analogue cables you’re good to go. If you’re thinking of trading in the copper multicore for a Cat5 digital snake, Qu’s dSNAKE port has you future-proofed, allowing connection to a combination of AR2412, AR84 or portable AB168 AudioRacks.
dSNAKE is our proprietary networking solution, boasting a transport latency of only 105us over cable runs of up to 120m / 390’. So if you’re mixing FoH you can place your I/O on the stage and run a single Cat5 cable back to the Qu mixer in the mix position.
,
iLive FX
Qu’s dynamics and FX algorithms are derived from the FX used in our iLive pro touring series. All Qu models boast 4 stereo iLive FX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more.
USB Audio Streaming
Qu’s built-in interface streams multitrack audio to your Mac or PC via a flexible patching system: all Input channels and the Main LR can be recorded at the same time, or you may choose to record something different such as FX returns or a pair of mixes. It will be recognized straightaway by any DAW supporting ASIO or Core Audio, including Logic, Cubase, Reaper, and Pro Tools.
Qu-Drive
Forget soundcard drivers and software setup, Qu has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB hard drive. Capturing multitrack recordings of your shows has never been so easy. Mixes and FX returns can be recorded alongside channels, and multitrack audio can be played back to the mixer for virtual sound-checks.
Channel Ducker
An advanced yet easy to use Ducker is available on every channel. It can be inserted on the fly on any number of Inputs and Stereo Groups, providin |
