2-Way Loudspeaker System with 15" Driver (60° x 40° Coverage)

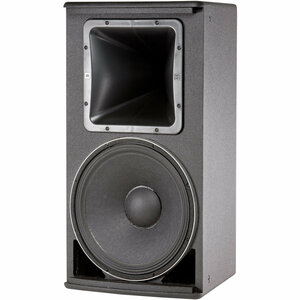

The AM5215/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.


,
Frequency Range (-10 dB) : 35 Hz – 20 kHz

Frequency Response (±3 dB) : 41 Hz – 18 kHz

Coverage Pattern : 60° x 40°, rotatable waveguide

Directivity Factor (Q) : 18.1

Directivity Index (DI) : 12.6 dB

Crossover Modes : Bi-amp/Passive switchable

Passive Crossover Frequency : 1.9 kHz

Transducer Power Rating (AES) : LF: 500 W (2000 W peak), 2 hrs
350 W (1400 W peak), 100 hrs
HF: 40 W (160 W peak), 2 hrs

Long-Term System Power Rating (IEC) : Passive mode: 350 W (1400 W peak), 100 hrs

Maximum SPL : Bi-amp mode:
LF: 125 dB-SPL cont avg (131 dB peak)
HF: 131 dB-SPL cont avg (137 dB peak)
Passive mode:
124 dB-SPL cont avg (130 dB peak)

System Sensitivity (1W @ 1m) : Passive mode: 98 dB SPL

Low Frequency Driver : 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil

Nominal Impedance : 8 ohms

Sensitivity (1W @ 1m, within operational band) : 99 dB SPL

High Frequency Driver : JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil

Nominal Impedance : 8 ohms

Sensitivity (1W @ 1m) : 115 dB SPL

Waveguide : PT-H64HF-1

Enclosure : Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood

Suspension Attachment : 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

Finish : Black DuraFlex™ finish.
White available upon request.

Grille : Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

Input Connector : NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

Environmental Specifications : Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in
vertical cabinet orientation) : 783 x 422 x 504 mm
(30.8 x 16.6 x 19.85 in)

Net Weight : 25.0 kg (55 lb)

Optional Accessories : M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
