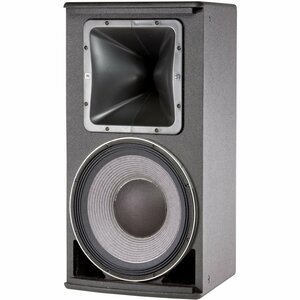

The AM7215 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Frequency Range ( –10 dB) : 34 Hz - 20 kHz
Frequency Response ( ± 3 dB) : 40 Hz - 18 kHz
LF Driver : 2265H
HF Driver : 2432H
System Type : 15" Two - Way, High Power, Full - Range
Dimensions (H x W x D) : 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
Weight : 27.2 kg (60 lb)
Crossover Modes : Bi-amp/Passive switchable
Passive Crossover Frequency : 1.4 kHz
Transducer Power Rating (AES) : LF: 1000 W (4000 W peak), 2 hr 750 W (3000 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC) : Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (dB-SPL, 1W @ 1m) : Bi-amp mode: LF: 128 dB-SPL cont avg (134 dB peak) HF: 134 dB-SPL cont avg (140 dB peak) Passive mode: 124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1W @ 1m) : Passive mode: 96 dB SPL
Nominal Impedance : 8 ohms
|
