High Power 3-Way Loudspeaker (90° x 50°, White)

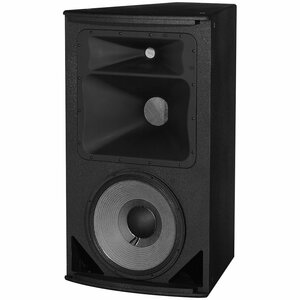

AM7315 is a high power 3-way full-range loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Frequency Response (±3 dB) : 45 Hz – 18 kHz

Crossover Modes : Tri-amp/Bi-amp switchable

Crossover Frequencies : 300 Hz and 2.3 kHz

Long-Term System Power Rating (IEC) : LF: 600 W (2400 W peak), 100 hrs
MF/HF: 200 W (800 W peak), 100 hrs

Maximum SPL : LF: 127 dB-SPL cont avg (133 dB peak)
Tri-amp mode:
MF: 133 dB-SPL cont avg (139 dB peak)
HF: 135 dB-SPL cont avg (141 dB peak)
Bi-amp mode:
MF/HF: 133 dB-SPL cont avg (139 dB peak)

Nominal Impedance System Sensitivity : 8 ohms

Low Frequency Driver : 1 x JBL 2265H 380 mm (15 in ) Differential Drive® driver with 75 mm (3 in)

Midrange Driver : JBL CMCD-82H Cone Midrange Compression
Driver with integral 200 mm (8 in) diameter
Differential Drive® dual voice coil internal driver

Sensitivity (1W @ 1m)
(Midrange) : 108 dB SPL

High Frequency Driver : JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Sensitivity (1W @ 1m)
(High Frequency) : 115 dB SPL

Suspension Attachment : 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware

Input Connector : NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.

Environmental Specifications : Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in vertical cabinet orientation) : 967 x 561 x 657 mm
(38.1 x 22.1 x 25.9 in)

Net Weight : 45.8 kg (101 lb)
