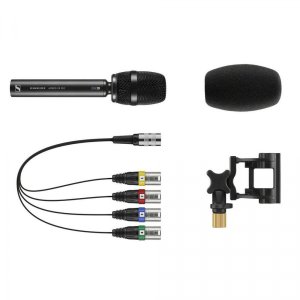

3D Virtual Reality Microphone
Dimensions: 215 x 49/25 mm (L x D)
Frequency response: 20 Hz to 20 kHz
Max. sound pressure level: 130 dB(A) for 1 kHz
Microphone connector: DIN12M, use enclosed adapter cable to convert to 4x XLR3M Polarity: Pin1 (GND), Pin2 (+), Pin3 (-)
Min. terminating impedance: 1000 â?¦
Nominal impedance: Approx. 200 â?¦
Pick-up pattern: 4x cardioid, in A-format arrangement (1: front-left-up [FLU], 2: front-right-down [FRD], 3: back-left-down [BLD], 4: back-right-up [BRU])
Power supply: 4x phantom powering (P48) as per IEC 61938 (48 �?�± 4 V), 3.5 mA each
Transducer principle: Pre-polarized condenser microphone
Weight: 1.060 kg
