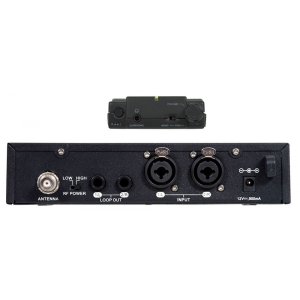

Any Spot 1800 Series Professional Wireless Personal Monitor

The AS-1800 is designed with features for the professional. The body pack receiver is set up for a king. With 150mW's of output to the ear buds, the AS-1800R is sure to be plenty loud for any environment. The receiver has a squelch adjustment, stereo/mono switch, LCD display, button lock, and a Magnesium Alloy Construction.

The Mixed Mono feature allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter right on the body pack.

With Mixed Mono:
- the performers can have their vocals in Input 1 and the band mix in Input 2 and adjust the volume of each independently to create their own personal mix, or
- you can send two different monitor mixes from the board so each performer can decide which mix they want to hear on their belt pack.
,
Frequency Range and Transmitter Output Level
Band: UHF
Frequency Range: B3 554~570 MHZ
Transmitter Output Power: 30mW or 100mW
Operating Range: Under Typical Conditions 300' (92m)
Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
Frequency Stability: ±0.0005%, Phase Lock Loop frequency control
Total Harmonic Distortion: < 0.7% @ 1KHz
Signal to Noise: >105dB
Maximum Deviation Range: ±68KHz
Operating Temperature: Range 14ºF to 122ºF (-10 Cº to +50 Cº)
