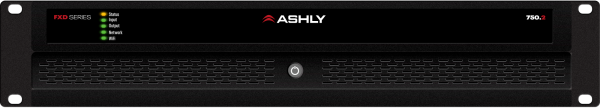

Ashly FXD750.2

The FX / FXD Series integrates multi channel amplification with the essential DSP functions needed for most projects, including input processing, zone routing, output EQ, limiting, and comprehensive per channel speaker tuning. With models ranging from 2 × 60W in a ½ rack chassis to 8 × 750W in a 2RU design, FX amplifiers scale easily to match system size and budget requirements. FXD variants add 4×4 Dante® audio networking for straightforward integration into AoIP systems. All channels support Low Z operation, and Hi Z (70/100V) requires bridging, enabling configurations up to 8 Low Z zones or 4 Hi Z zones on 8 channel models. Setup and control are intentionally simple: a browser based interface accessible via Ethernet or the amplifier’s built in WiFi hotspot eliminates the need for installed software. Clear signal flow navigation, real time metering, and remote access streamline configuration and programming from any PC, tablet, or smartphone on the local network. Add in a few FXC remotes for simple on-wall remote control of source select and zone volume, and the installation is ready to go. Lightweight construction, quiet Class D performance, and flexible mounting options make the FX / FXD Series ideal for retail, hospitality, education, houses of worship, and general multi zone installations where dependable amplification and straightforward DSP are exactly what’s needed.
