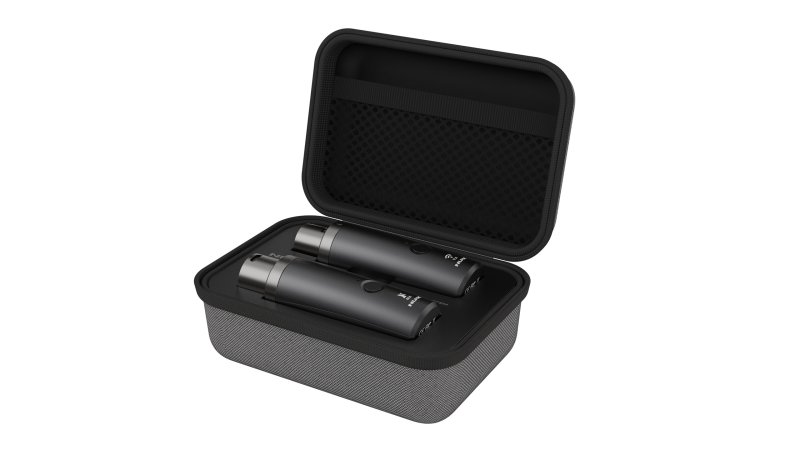

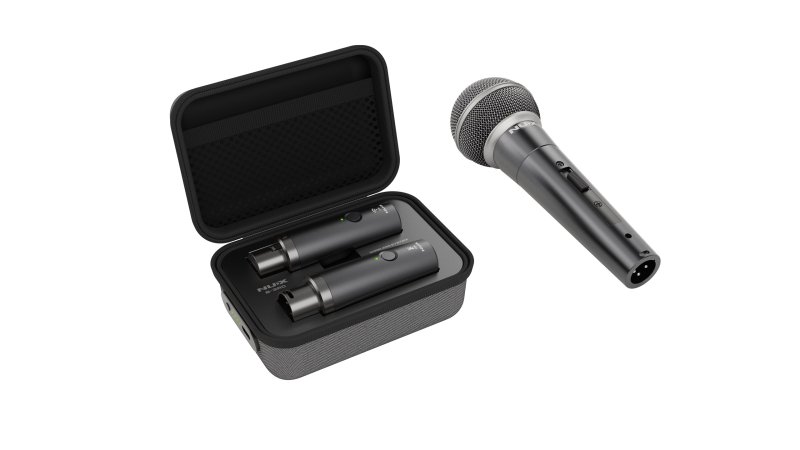

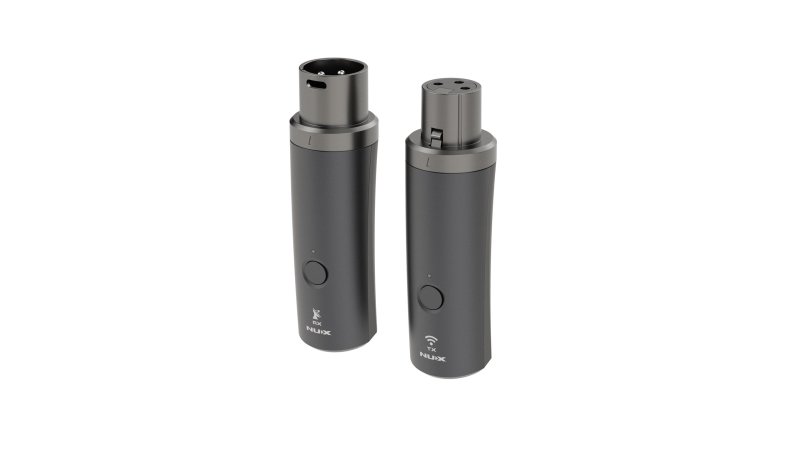

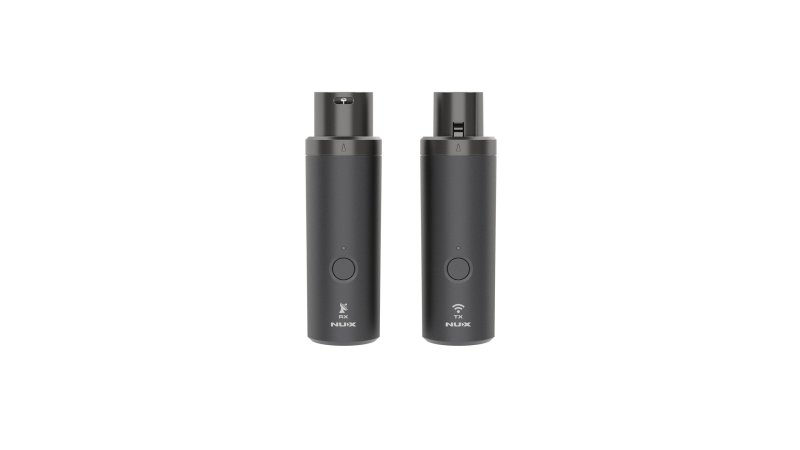

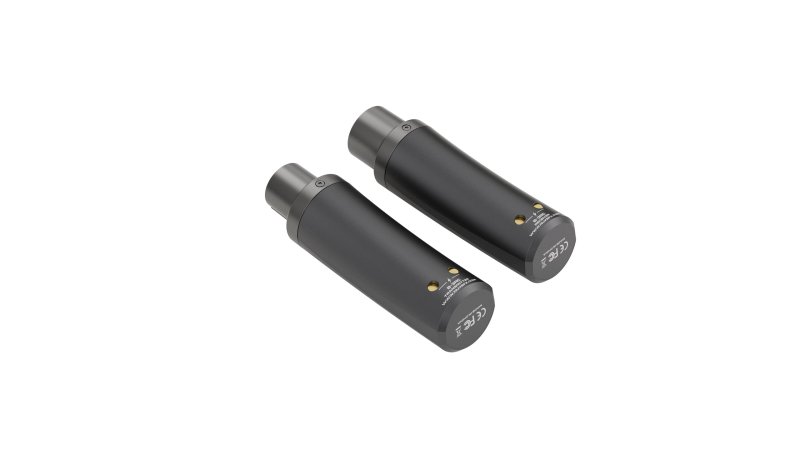

NUX B-3RC 2.4GHz Wireless Mic System

Wireless System Specifications:

• Operating Frequency: 2.4 GHz
• Transmission Power: <10 mW EIRP
• Sampling Accuracy: 24-bit
• Latency: <4.8 ms
• Transmission Range: Up to 100 ft (line-of-sight)
• THD + Noise: <0.1% @ 1 kHz
• Built-in Battery Capacity (TX & RX): 330 mAh / 3.7 V
• TX/RX Operating Time: Approx. 3.5 hours
• TX/RX Charging Time: Approx. 2.5 hours
• Storage Box Battery Capacity: 3000 mAh / 3.7 V
• Storage Box Charging Time: Approx. 4 hours
• Transmitter Dimensions: 80 (L) × 24 (W) × 24 (H) mm
• Receiver Dimensions: 80 (L) × 24 (W) × 24 (H) mm
• Transmitter Weight: 36 g
• Receiver Weight: 36 g


NDM-4 Dynamic Microphone Specifications:

• Type: Dynamic
• Impedance: 600 Ω ±15% @ 1 kHz
• Sensitivity: -48.4 ±3 dB (0 dB = 1 V/Pa)
• Frequency Response: 50 Hz – 15 kHz
• Directivity: Uni-directional (Cardioid)
• Operating Temperature: -30 ℃ – 60 ℃
• Construction: Sponge Ref-shock Type
• Dimensions: 164 (L) × 50 (W) × 50 (H) mm
• Weight: 213 g
