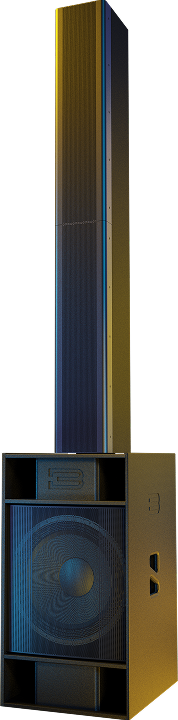

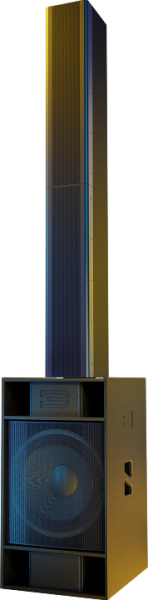

BASSBOSS SUBLIM8-MK3

Loudspeaker Description

Self-powered, 3-Way Active Full Range Loudspeaker Column

Frequency Response (±3 dB)

35Hz - 19,000Hz

Maximum Sustained Output

130 dB (half-space)

Max SPL (Peak)*

133 dB (half-space)

Nominal Dispersion (H° x V°)

120 x 20

Amplification

4000W Class D (2400W LF + 800W MF + 800W HF)

Processing

Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets

Electrical Input Connector, Amp

Neutrik powerCON True 1 TOP IP65 rated waterproof connectors

Electrical Outlet Connector, Amp

Neutrik powerCON True 1 female. Outlet capacity is limited to 10A or 1200W. Do not exceed the total capacity of the inlet connector.

Electrical Connector Mains

USA 3-pin grounding 120V electrical plug: NEMA 5-15; Outside USA alternate connectors provided
