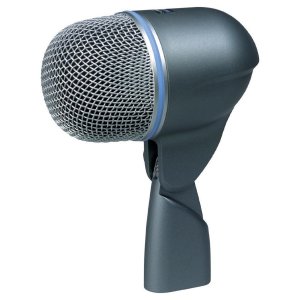

BETA Series Bass / Kick Drum Microphone

The Shure Beta 52�A is a high output dynamic microphone with a tailored frequency response designed specifically for kick drums and other bass instruments. It provides superb attack and "punch", and delivers studio quality sound even at extremely high sound pressure levels.

The Beta 52A features a modified supercardioid pattern throughout its frequency range to insure high gain-before-feedback and excellent rejection of unwanted sound. A built in dynamic locking stand adapter with an integral XLR connector simplifies installation, particularly if the microphone is to be placed inside a kick drum. The stand adapter keeps the microphone position fixed and resists slipping, even when subjected to sharp blows and strong vibrations. A hardened steel mesh grille protects the Beta 52A from the abuse and wear associated with touring.

Type
Dynamic (moving coil)

Frequency Response
20 to 10,000 Hz

Polar Pattern
Supercardioid, rotationally symmetrical about microphone axis

Output Level (at 1,000 Hz)
Open Circuit Voltage: -64 dBV/Pa* (0.6 mV)
*1 Pa = 94 dB SPL

Impedance
Rated impedance is 150 ohms (45 ohms actual) for connection to microphone inputs rated low Z

Phasing
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Maximum SPL
174 dB at 1000 Hz (calculated)

Connector
Three-pin professional audio connector (male XLR type)

Case
Silver blue enamel-painted die cast metal with hardened, matte-finished steel grille

Adjustable, Locking Stand Adapter
Integral, dynamic locking, adjustable through 180 degrees, with standard 5/8"-27 thread

Net Weight
605 grams (21.6 oz)
