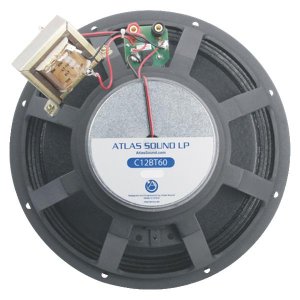

12" Dome Tweeter Coaxial Speaker with Transformer

Atlas Sound Model C12BT60 is a professional quality coaxial loudspeaker for use where full range music and voice reproduction are desired. Model C12BT60 combines a 12" diameter low frequency reproducer and a 1" diameter high frequency, post-mounted reproducer. The unit features a curvelinear, treated paper cone for lower harmonic distortion and a built-in crossover network for determining proper frequency selection between the two reproducers.
The competitively priced unit assures smooth frequency response in a high power handling mode. For best results, enclosures with a volume of 2 cu. ft. or greater (including Atlas Sound Models Q4412 or Q4612) are recommended.

A factory installed 60 watt line transformer is included with the package, however, the transformer can be easily bypassed for 8 ohm applications.

Depth: 40 3/16" (10.63625 cm)
Diameter: 12 7/8" (32.7025 cm)
Shipping Weight: 5.00 lbs (2.27 kgs)
Frequency Response: 33Hz to 21kHz (±2dB)
Power Taps: 7.5, 15, 30, 60
Speaker Type: Full Range Coaxial
Dispersion: 90°
Sensitivity: 95dB (at 1W / 1M)
