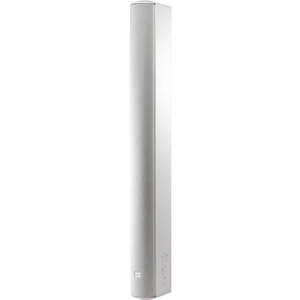

Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers (White)

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Components : Sixteen 50 mm
(2 in) Full-Range

Frequency Range (-10 dB) : 80 Hz – 20 kHz

Vertical Coverage : Vertical
Narrow Mode: 15° (2 kHz - 16 kHz) (±10°)
Broad Mode: 40° (1 kHz - 16 kHz) (±10°)
Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)

Sensitivity (2.83V@ 1m) : Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )
(music mode) 93 dB (300 Hz - 18 kHz)
Broad: (speech mode) 93 dB (2 kHz - 14 kHz)
(music mode) 90 dB (300 Hz - 18 kHz)

Nominal Impedance : 8 ohms (in Thru mode)

Power Capacity (8 ohm setting) : 325 W (1300W peak), 2 hrs
200 W (800W peak), 100 hrs

Max SPL : Narrow: (speech mode) 121 dB cont ave (127 peak)
(music mode) 118 dB cont ave (124 peak)
Broad: (speech mode) 118 dB cont ave (124 peak)
(music mode) 115 dB cont ave (121 peak)

70V/100V Transformer Taps : 120W, 60W, 30W (15W at 70V only), and 8? thru, via switch

Enclosure : Fiberglass reinforced ABS cabinet, painted aluminum grille

Outdoor Capability : IP-54 rated, per IEC529. UV, moisture and salt-spray resistant

Colors : Black or White (-WH)

Insert Points : 18 M6 insert points on back panel.

Mounting : Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.

Dimensions (H x W x D) : 1000 x 98.5 x 153
(39.4 in x 3.8 in x 6.0 in)

Net Weight : 7.2 kg (15.8 lb)

Included Accessories : Swivel (pan) / tilt wall bracket
