Presonus

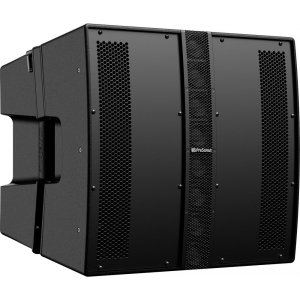

Hybrid Point Source/Line Array Constant Directivity Loudspeaker

Brand: Presonus
Model: CDL12 P
UPC: 673454009198
12-inch long-throw LF transducer with 2.5-inch voice coil
15° vertical directivity can be extended from 30° up to 90° with additional arrayable CDL12Ps
2-position pole mount for use with up to two CDL12P on a tripod or atop an 18-inch PreSonus subwoofer (Note: a CDL18s must be used for when two CDL12Ps are arrayed)
500 x 500 watts Class D power for high SPLs and lightning-fast transient response
Balanced XLR input and output
Continuous Directivity constant curve array with eight 2-inch cone drivers disperse sound an amazing 120 degrees horizontally
Easy-to-handle, compact form factor and 63 lb. weight
Easy-to-use DSP Controls: Array Mode (1-6 boxes), 90 Hz High Pass Filter, Sub Mode (Off, CDL18s, ULT18, or AIR18s)
Integrated flyware to create an array of up to six CDL12P's
Locking AC Connector in and out
Low crossover point minimizes comb filtering and enhances line array intelligibility
Signal, -3 dB, Limiter Protection, and Clip monitoring
Please log in to see your price

Related products

Customers who bought this product also purchased

Model: MS7701B
Please log in to see your price
Model: MS7201B
Please log in to see your price
Model: DB500
Please log in to see your price
Model: RPB1000
Please log in to see your price
Model: SS7748
Please log in to see your price
Model: WSR7025
Please log in to see your price
Model: SS7762B
Please log in to see your price
Model: SM58-LC
Please log in to see your price

Product Properties

  • Bullet points
  • 12-inch long-throw LF transducer with 2.5-inch voice coil
    15° vertical directivity can be extended from 30° up to 90° with additional arrayable CDL12Ps
    2-position pole mount for use with up to two CDL12P on a tripod or atop an 18-inch PreSonus subwoofer (Note: a CDL18s must be used for when two CDL12Ps are arrayed)
    500 x 500 watts Class D power for high SPLs and lightning-fast transient response
    Balanced XLR input and output
    Continuous Directivity constant curve array with eight 2-inch cone drivers disperse sound an amazing 120 degrees horizontally
    Easy-to-handle, compact form factor and 63 lb. weight
    Easy-to-use DSP Controls: Array Mode (1-6 boxes), 90 Hz High Pass Filter, Sub Mode (Off, CDL18s, ULT18, or AIR18s)
    Integrated flyware to create an array of up to six CDL12P's
    Locking AC Connector in and out
    Low crossover point minimizes comb filtering and enhances line array intelligibility
    Signal, -3 dB, Limiter Protection, and Clip monitoring

Description:

The result of years of research and development, the PreSonus CDL12P powered loudspeaker combines the best attributes of point source and line array technology using a unique constant-directivity design that radiates a highly focused pattern with consistent SPL throughout the frequency-response range, both on- and off-axis. With the CDL12P, the eight 2-inch high-frequency drivers arc over a single 12-inch woofer, comparable to the coaxial driver configuration found on top studio monitors. The result is better sonic coherence across the entire venue. Regardless of how many CDL12Ps you stack, you're working with a shared acoustic axis-and non-turbulent sound propagating throughout the room. The result is clear, articulate speech intelligibility and natural music reproduction. The CDL12P is portable and can be used on individually or in an arrayed pair on a tripod stand, atop an 18-inch PreSonus subwoofer, or in a flown installation of up to 6 CDL12Ps in a vertical array, making it a great choice for touring bands and mobile DJs, as well as for fixed installs in small and midsize venues.
