Elation

Colour Series LED Elipsoidal

Brand: Elation
Model: COLOUR 5 PROFILE
UPC: 837874018400
Please log in to see your price

Related products

Customers who bought this product also purchased

Model: M-8X2
Please log in to see your price
Model: SAFETY CABLE
Please log in to see your price
Model: 1-2.5IN PRO CLAMP
Please log in to see your price
Model: SIXPAR 200
Please log in to see your price
Model: DMX3C-10
Please log in to see your price
Model: LIGHT DUTY C-CLAMP
Please log in to see your price
Model: KS112
Please log in to see your price
Model: XT-MCH1TX2-30FT
Please log in to see your price

Product Properties

  • Product Type
  • Stage Lighting

Description:

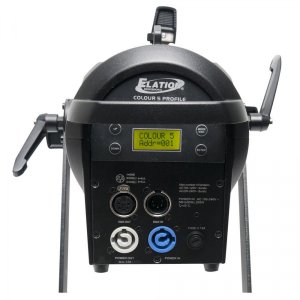

The new COLOUR 5 Profile™ Ellipsoidal features a 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine, >94CRI, 4,100 total lumens, with 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, and dimming curves, flicker free operation for TV and FILM, 5pin DMX and powerCON in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).


,
FEATURES
High CRI >94, 4,100 Total Lumens*
Interchangeable Lens Options** (19°, 26°, 36°, 50°)
(4) Blade Manual Framing Shutters
Variable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Quiet Fan Cooling
(*with 26° lens) (**sold separately)

SOURCE
180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
50,000 Hour Average LED Life

PHOTOMETRIC DATA
>94CRI 4,100 Total Lumens*
(*with 26° lens)

EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curve Modes

GOBOS
Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.

CONTROL / CONNECTIONS
Multiple DMX Channel Modes
4 Button Control Panel
LED Menu Display
5pin DMX In/Out
powerCON In/Out

SIZE / WEIGHT
Length: 24.3” (618mm) / 26.5” (674mm) Fully Extended
Width: 12.2” (310mm)
Vertical Height: 15.7” (398mm)
Weight: 21.0 lbs. (9.5 kg)

ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 50/60Hz
225W Max Power Consumption
14° to 113°F (-10° to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP20

INSTALLATION
Rigging: Integrated Yoke
Working Position: Any (360°)

INCLUDED ITEMS
(1) powerCON Cable
(1) 5pin DMX Cable
(1) Safety Cable
