JBL

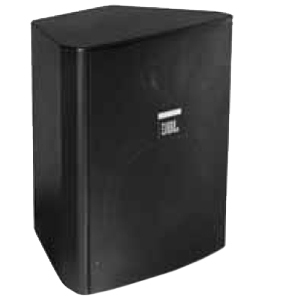

Shielded Compact Indoor / Outdoor Background / Foreground Loudspeaker

Brand: JBL
Model: CONTROL 25AV
UPC: 050036903301
Products Variants:

Video shielded for use near video monitors

Extremely smooth frequency response

Stainless steel grill for harsh environments

60 W transformer for 70 V or 100 V lines, with 8 ohms thru

SonicGuard™ overload protection

130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter

Includes InvisiBall® mounting hardware and sealed input panel cover

Screw-down input terminals

100° x 100° high frequency horn

more
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Customers who bought this product also purchased

Model: CONTROL 26CT
Please log in to see your price
List Price: $258.61
Model: MX418D/C
Please log in to see your price
List Price: $526.00
Model: CONTROL 16C/T
Please log in to see your price
List Price: $196.93
Model: AD-C6T-LP
Please log in to see your price
List Price: $260.00
Model: CONTROL 28-1
Please log in to see your price
List Price: $402.89
Model: MTC-28UB-1
Please log in to see your price
List Price: $91.00
Model: CONTROL 28-1-WH
Please log in to see your price
List Price: $402.89
Model: CONTROL 25AV-WH
Please log in to see your price
List Price: $288.73

Product Properties

  • Product Type
  • Surface Mount Speaker

Description:

The Control® 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.

Frequency Range : 70 Hz - 23 kHz
(-10 dB)70 Hz -
23 kHz (-10 dB)

Power Capacity : 200 W Continuous
Program Power
100 W Continuous
Pink Noise

Transformer Taps : 70V: 60 W, 30 W, 15 W, 7.5 W taps (Taps #4,#3, #2 & #1)
100V: 60 W, 30 W, 15 W taps
(Taps #3, #2, & #1)

Nominal Sensitivity : 87 dB SPL, 1 W @ 1 m (3.3 ft)

Midrange
(±1.5 dB, typical) : 130 Hz - 14 kHz

Nominal Coverage : 100° x 100°

Maximum SPL @ 1m : 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech

Directivity Factor (Q) : 4.9 dB, averaged 500 Hz to 4 kHz

Directivity Index (DI) : 6.9 dB, averaged 500 Hz to 4 kHz

Nominal Impedance : 8 ohms

Low Frequency : 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former

High-Frequency : 20 mm (.75 in) titanium coated PEI

Enclosure Material : High Impact polystyrene

Grille : Painted stainless steel, black or white to match cabinet, paintable

Overload Protection : Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition

Environmental : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating

Terminations : Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)

Safety Agency Rating : Transformer is listed per UL1876

Colors : Black or white (-WH)

Rotation : Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44° all directions

Dimensions (H x W x D) : 236 x 186 x 159 mm
(9.3 x 7.4 x 6.3 in)

Net Weight (ea) : 4.0 kg (9 lb)

Shipping Weight (ea) : 9.0 kg (20 lb) per pair

Included Accessories : 1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench
