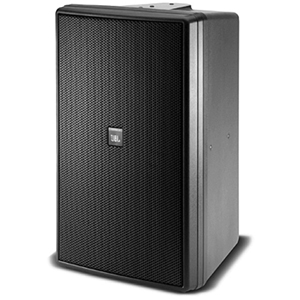

3-Way Indoor / Outdoor Monitor Speaker

The three-way Control 30 is fully weatherized, making suitable for outdoor applications as well as larger indoor venues. It features a top-quality 150 W multitap transformer for 70V/100V line distribution systems and a bypass for use as an 8 ohm speaker.

The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.


,
Frequency Range : 38 Hz – 17 kHz
(-10 dB)

Power Capacity : 500 W Continuous
Program Power
250 W Continuous
Pink Noise

Transformer Taps : 70 V: 150 W, 75 W, 38 W, 19 W 100 V: 150 W, 75 W, 38 W Thru Position: 4 nominal

Frequency Response : 40 Hz – 16 kHz
( ± 3 dB)

Maximum SPL @ 1m : Short-Term: 123 dB; Long-Term: 117 dB

Nominal Sensitivity : 93 dB, 1W @ 1m (3.3 ft)

Nominal Coverage Angle : 120° H x 110° V

Directivity Factor (Q) : 5.2 dB, averaged 500 Hz to 10 kHz

Directivity Index (DI) : 7.1 dB, averaged 500 Hz to 10 kHz

Nominal Impedance : 4 ohms

Crossover Network : 3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry.

Low Frequency : 250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet

Mid Frequency : 125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former

High Frequency : 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround

Enclosure Material : High Impact PolyStyrene (HIPS) with 10% glass fill plus patent pending internal 5 mm foamed polyurethane secondary mold

Grille : Thermoset composite coated steel, WeatherMax multi-layer foam

Overload Protection : SonicGuard full range power limiting to protect network and transducers.

Environmental : IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.

Terminations : Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open

Safety Agency Rating : Transformer is listed per UL1876

Colors : Black or white (-WH)

Dimensions (H x W x D) : 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in.)

Net Weight (ea) : 18.9 kg (42 lb)

Shipping Weight (ea) : 20.3 kg (45 lb)

Included Accessories : 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall Hex wrench.

Optional Accessories : MTC-30CM (-WH) to install speaker down from the ceiling. MTC-30UB (-WH) U-Bracket
