JBL

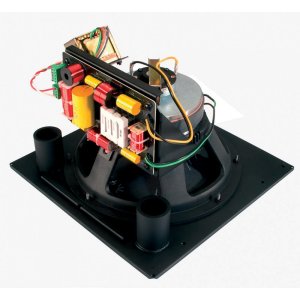

High-output 12" Coaxial Ceiling Loudspeaker

Brand: JBL
Model: CONTROL 322C
UPC: 050036905152
Products Variants:

Extraordinary clarity for speech and vocals with extended frequency response for music

Consistent 90° broadband pattern control

Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone

Medium-format compression driver

Advanced high-slope crossover network for constant coverage and smooth, natural midrange

Clean, contemporary grille and optional backbox available

400 Watt power handling with high sensitivity provides high SPL capability

more
Please log in to see your price
Specification Sheet Specification Sheet
Specification Sheet (Download)

Related products

Customers who bought this product also purchased

Product Properties

  • Product Type
  • Ceiling Speaker

Description:

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Frequency Range
(-10 dB) : 32 Hz – 20 kHz

Long-Term System Power Rating : 400 W (1600 W peak), 2 hrs
250 W (1000 W peak), 100 hrs

Sensitivity (2.83V@ 1m) : 95 dB measured half-space
100 dB computed for competitive comparison

Frequency Response
(±3 dB) : 48 Hz – 19 kHz

Coverage Pattern : 90° conical, broadband
(Avg. 1k - 16kHz)

Directivity Factor (Q) : 9 (1k - 16kHz)

Directivity Index (DI) : 9.5dB (1k - 16kHz)

Crossover Network : 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

Nominal Impedance : 8 ohms

Dimensions (H x W x D) : 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
