JBL

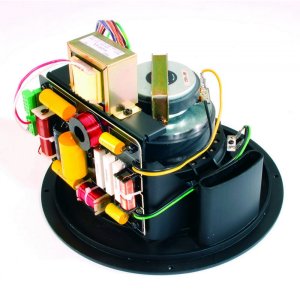

8" Coaxial Ceiling Loudspeaker with HF Compression Driver and Transformer

Brand: JBL
Model: CONTROL 328CT
UPC: 050036905183
200 mm (8 in) woofer with Kevlarreinforced cone and 50 mm (2 in) voice-coil
25 mm (1" exit) compression driver
250 Watt power handling with very high sensitivity provides high SPL capability
Advanced high-slope crossover network for constant coverage and smooth, natural midrange
Clean, contemporary grille and optional backbox available
Consistent 120° broadband pattern control covers an extremely large area
Extraordinary clarity for speech and vocals with extended frequency response for music
Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver
more
Please log in to see your price
Specification Sheet Specification Sheet
Specification Sheet (Download)

Related products

Customers who bought this product also purchased

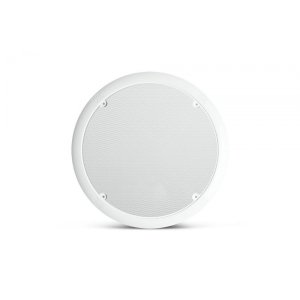

JBL MTC-RG6/8
JBL MTC-RG6/8
Model: MTC-RG6/8
Brand:JBL
Please log in to see your price
View

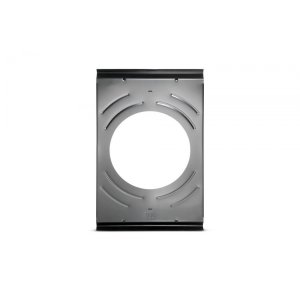

JBL MTC-TB6/8
JBL MTC-TB6/8
Model: MTC-TB6/8
Brand:JBL
Please log in to see your price
View

Product Properties

  • Bullet points
  • 200 mm (8 in) woofer with Kevlarreinforced cone and 50 mm (2 in) voice-coil
    25 mm (1" exit) compression driver
    250 Watt power handling with very high sensitivity provides high SPL capability
    Advanced high-slope crossover network for constant coverage and smooth, natural midrange
    Clean, contemporary grille and optional backbox available
    Consistent 120° broadband pattern control covers an extremely large area
    Extraordinary clarity for speech and vocals with extended frequency response for music
    Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver
  • Product Type
  • Ceiling Speaker

Description:

Control 328CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Frequency Range
(-10 dB) : 45 Hz – 18 kHz

Long-Term System Power Rating : 250 W (1000 W peak), 2 hrs
150 W (600 W peak), 100 hrs

Taps : 70V: 68W, 34W, 17W, 8.5W
100V: 68W, 34W, 17W

Frequency Response
(±3 dB) : 60Hz – 16 kHz

Coverage Pattern : 120° conical, broadband

Nominal Impedance (321C): : 8 ohms

Directivity Factor (Q): : 7.0 (Avg 1k - 16kHz)

Directivity Index (DI): : 8.5dB (Avg 1k - 16kHz)

Sensitivity (2.83V@ 1m): : 93 dB measured half-space

Maximum SPL6: : 118 dB cont ave (124 dB peak)

Crossover Network: : 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate

Dimensions (H x W x D) : 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 218 mm (8.6 in)
