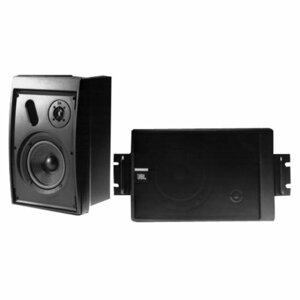

Compact Control Monitor Loudspeaker System

The Control 5 is a high-performance control monitor suitable for use as the primary sound source in many applications. Its 6.5" LF and 1" HF drivers are magnetically shielded, enabling use near video monitors.

Frequency
Range (± 3 dB) : 75 Hz to 20 kHz

Power Capacity : I75 W

Sensitivity : 89 dB SPL,
1 W, 1 m (3.3 ft)

Directivity Factor (Q) : 2.8

Directivity Index (DI) : 4.5

Nominal Impedance : 4 ohms

Crossover Frequency : 3 kHz

Polarity : Positive Voltage to + terminal causes outward low frequency cone motion

Enclosure Material : Polypropylene structural foam

Finish : Black or white

Dimensions : (H) 387 mm x (W) 251 mm x (D) 229 mm (15.25 in x 9.875 in x 9 in)

Net Weight (ea) : 4.5 kg (10 lbs.)

Shipping Weight (pair) : 11 kg (24 lbs.)

MTC-51 Wall Mount Bracket : Allows the Control 5 to be mounted to any rigid vertical surface with a unique polymer ball and clamp design, In addition to omnidirectional movement about the ball, the speaker’s connecting wires may be run internal to the clamp. Optional colors.

MTC-52 Ceiling Mount Bracket : The same as the MTC-51 except that it is designed to be mounted to a rigid ceiling surface. Optional colors.

Note : Molded of dense polypropylene Accessory attachment points on rear of the enclosure are 1?4 x 20 threaded brass bushings
