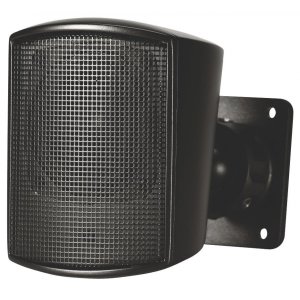

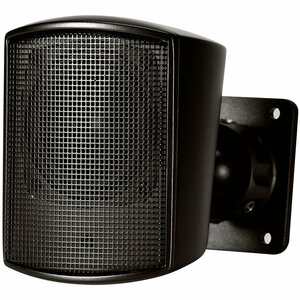

Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

Frequency Range (-10 dB) : 140 Hz – 20 kHz

Frequency Response (±3 dB) : 180 Hz – 17 kHz

Power Capacity : 50 Watts Continuous
Program Power (2 hrs)
25 Watts Continuous
Pink Noise (2 hrs)
30 Watts Continuous
Program Power (100 hrs)
15 Watts Continuous
Pink Noise (100 hrs)

Nominal Sensitivity : 85 dB (4.0V/1m = 1W)
82 dB (2.83V, 1m)

Nominal Coverage Angle : 150° x 150° (omnidirectional)

Rated Maximum SPL (1m) : 94 dB average, 100 dB peak

Nominal Impedance : 16 ohms

Transducer Driver : 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.

Input Connector : Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)

Material : High impact polystyrene, painted zinc-plated metal grille.

Dimensions (H x W x D) : Cabinet: 115 x 84 x 96 mm
(4.5 x 3.3 x 3.75 in)
Wall bracket: 51 mm (2.0 in)

Net Weight : 0.7 kg (1.5 lbs)

Shipping Weight : 0.8 kg (1.8 lbs)

Included Accessories : Wall bracket (both speaker and wall parts), 2-pin locking connector.
