JBL

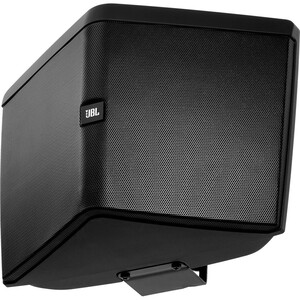

Control Series Wide-Coverage Speaker with 5-1/4" LF, Dual Tweeters and HST Technology

Brand: JBL
Model: CONTROL HST
UPC: 691991000775
Controlled sound
Hemispherical Soundfield Technology
Splayed Tweeters
Wall Facing Woofer
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Customers who bought this product also purchased

Model: E 904
Please log in to see your price
Model: CONTROL 28-1
Please log in to see your price
Model: 8128
Please log in to see your price
Model: MD 421-II
Please log in to see your price
Model: DP7
Please log in to see your price
Model: CONTROL SB2210-WH
Please log in to see your price

Product Properties

  • Product Type
  • Surface Mount Speaker

Description:

ELIMINATION OF WALL REFLECTION

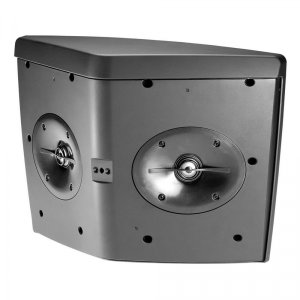

The patent-pending design includes a wall-facing woofer, two horizontally splayed tweeters, a wall bracket that spaces the speaker the required distance from the wall, and a tapered cabinet that provides proper loading and dispersion of the sound. With most on-wall (surface-mount) speakers, the baffle of the speaker is some distance from the wall. It is the nature of low and low-mid frequency sound waves to wrap around the speaker, where they reflect back out from the wall, recombining with the original sound. When this occurs, some frequencies add coherently to the original sound and other frequencies cancel, causing peaks and dips in the resulting frequency response and inconsistencies from location to location within the listening space. By substantially reducing this occurrence, Control HST is able to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.


SPLAYED TWEETERS
The dual tweeters feature aluminum diaphragms with a CMMD treat, polyurethane surround, a neodymium magnet, and fluid-cooling for high output, low distortionand humidity resistance.


WALL FACING WOOFER
The well-damped woofer incorporates a CMMD ceramic metal matrix diaphragm for a very high stiffness-to-weight ratio, high output, resistance to humidity
and long-term durability.


CONTROLLED SOUND
Engineered noise cancelling allows Control HST to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.

Frequency Range (-10 dB) 50 Hz – 20 kHz
Frequency Response (±3 dB) 68 Hz – 18 kHz
Coverage Pattern 180° H x 160° V (1 kHz – 2 kHz, nominal)
160° H x 150° V (ave, 1 kHz – 16 kHz)
System Power Rating (IEC) 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
Nominal Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W, 7.5W
Environmental IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
Net Weight 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
Included Accessories U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
