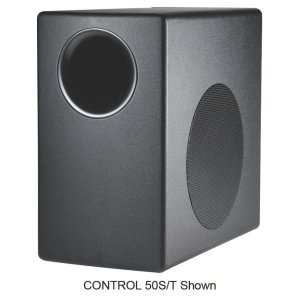

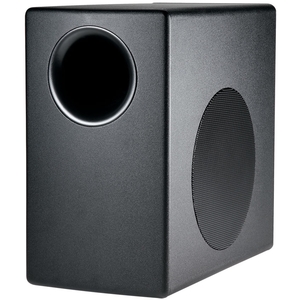

Surface-Mount Subwoofer for Subwoofer-Satellite
Loudspeaker System (White)

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.

Frequency Range (-10 dB) : 32 Hz – 200 Hz

Frequency Response (±3 dB) : 50 Hz – 150 Hz

Power Capacity : 300 Watts Continuous
Program Power (2 hrs)
150 Watts Continuous
Pink Noise (2 hrs)
200 Watts Continuous
Program Power (100 hrs)
100 Watts Continuous
Pink Noise (100 hrs)

Nominal Sensitivity (2.83V, 1m) : 95 dB (near corner), 89 dB (center of wall)

Rated Maximum SPL (1m) : 115 dB average, 121 dB peak (near corner)
109 dB average, 115 dB peak (center of wall)

Nominal Impedance : 8 ohms (in bypass/thru mode)

Transformer Taps : 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru

Transducer Driver : 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former

Input Connectors : Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)

Material : Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.

Dimensions (H x W x D) : Cabinet: 356 x 391 x 203 mm
(14.0 x 15.4 x 8.0 in)
Wall Bracket: 15 mm (0.6 in) deep

Wall Bracket : 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel

Net Weight : 9.0 kg (20 lbs)

Shipping Weight : 10.2 kg (23 lbs)

Included Accessories : Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
