Atlas Sound

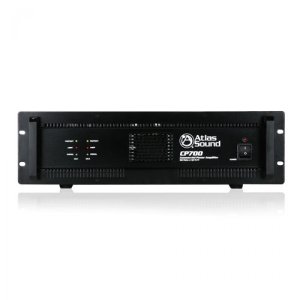

700W Stereo Commercial Amplifier

Model: CP700
UPC: 612079182572
25V, 70.7V, 100V, and direct coupled (2,4, and 8 Ohm) outputs mounted on barrier strips with covers for safety
Balanced inputs on barrier strip and XLR connectors
Dual-speed, high efficiency fan cooling
Loop through feature on male XLRs, one per channel input
Power-up muting
Short-circuit, temperature, and DC offset protection
Soft clip limiter protection
Stepped attenuators mounted on the rear for security
Stereo, bridge, or parallel operating modes selectable via rear mounted switch
Toroidal output transformers provide full electrical isolation and meet worldwide safety agency approval
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Model: CP400
Please log in to see your price
Model: NCSA180Z-U-US
Please log in to see your price
Model: NCSA240Z-U-US
Please log in to see your price

Customers who bought this product also purchased

Model: MS7201B
Please log in to see your price
Model: SS7740
Please log in to see your price
Model: SM58-LC
Please log in to see your price
Model: XC-MIC25
Please log in to see your price
Model: UA844+SWB
Please log in to see your price
Model: DN-500BDMKII
Please log in to see your price
Model: XC-MIC50
Please log in to see your price
Model: BLX1=-H10
Please log in to see your price

Product Properties

  • Bridged 8ohm/4ohm/2ohm
  • 850/1100,700@140V
  • Channel Count
  • 2
  • Power/Ch. 8ohm/4ohm/2ohm
  • 300/400/550,350@70V
  • Product Type
  • Install Amplifier
  • Rackspace
  • 3

Description:

A professional grade audio power amplifier specifically designed for demanding contractor applications, the CP700 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 70.7V output through transformer) Now you can have the peace of mind that systems specified with the CP700 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.

CP700’s two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.

Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the Atlas Sound CP700 is the perfect answer for high power/low cost amplification needs.

Height: 5-3/16" (13 cm)
Width: 18 7/8" (48 cm)
Depth: 16 7/8" (42 cm)
Shipping Weight: 54.00 lbs (24.49 kgs)
Frequency Response: 30Hz - 50kHz
Channels: Two
Connector Type: Terminal Block & XLR
Finish: Black
Number of Fans: 1 - Variable Speed
Output Power: 350 Watts/Channel @ 70.7V, 700 Watts 140V/200V Bridge Mono, 400 Watts/Channel @ 4O
Rack Spaces: 3 RU
UL Listed/Standard: ETL to 813
