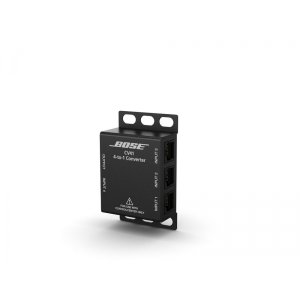

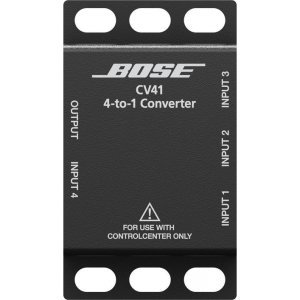

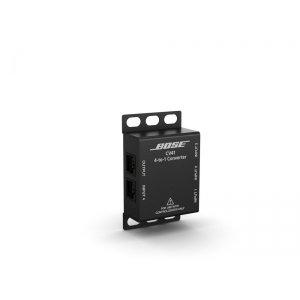

ControlCenter CV41 4-to-1 Converter

Homerun to PowerShare amplifiers – Allows up to two CC-1 controllers (PS602) or up to four CC-1 controllers (PS604) to be homerun directly to PowerShare amplifiers.

Supports upstream Daisy-Chaining – CC-1 zone controllers can first be daisy-chained prior to connecting to the CV41. Any combination of daisy-chaining and homeruns is supported.

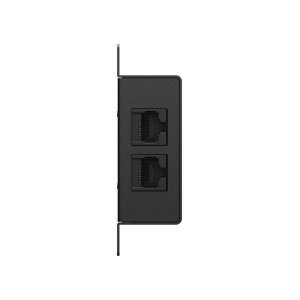

Cat 5 wiring – Five RJ-45 ports (TIA/EIA 568B) accomodate four CC-1 inputs and one master output back to the PS602 or PS604 PowerMatch amplifier.

Rack-Mountable – The CV41 stands 2U tall and can be attached to standard rack rails for secure mounting

Bose Part # 768928-0010
