Marshall

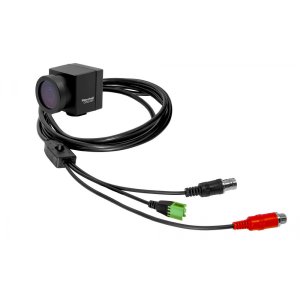

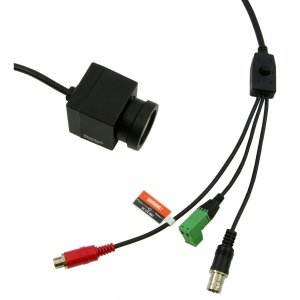

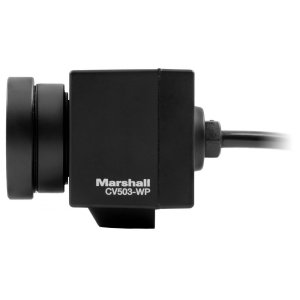

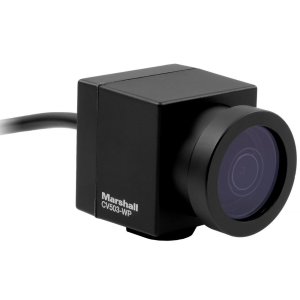

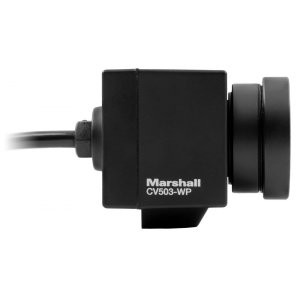

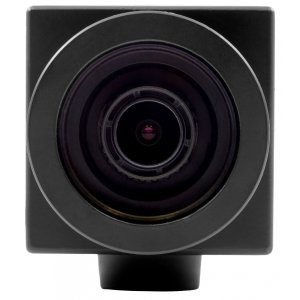

All-Weather HD Miniature Camera (3G/HDSDI)

Brand: Marshall
Model: CV503-WP
UPC: 801813194036
2.5 Megapixel (1/2.86") sensor (4:2:2 color)
Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
Full-sized 3G/HDSDI (BNC) output
Interchangeable M12 lens mount includes stock 3.6mm lens (72DegH. AOV)
IP67-rated weatherproof housing, wide lens cap for flexible wide shots
Remote adjustable through RS485 (Visca) or OSD menu joystick
Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Model: GY-HM890U
Please log in to see your price
Model: GY-HM180U
Please log in to see your price
Model: GY-HM620U
Please log in to see your price
Model: CV630-IP
Please log in to see your price
Model: CV420-30X-IP
Please log in to see your price
Model: KY-PZ100WU
Please log in to see your price

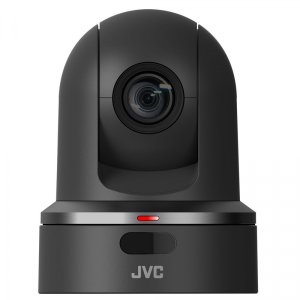

Model: KY-PZ100BU
Please log in to see your price
Model: 910-2100-020
Please log in to see your price

Customers who bought this product also purchased

Model: GA100
Please log in to see your price
Model: GTA4500
Please log in to see your price
Model: SCARLETT 2I2 4TH GEN
Please log in to see your price

Product Properties

Description:

The Marshall CV503-WP Weatherproof Miniature HD Camera is the professional solution for capturing crisp video in true color at outdoor broadcast events and AV applications where weather becomes a factor. The CV503-WP offers interchangeable lenses, remote adjustable settings, and protection from the elements in a compact IP67-rated housing. Built around a next generation 2.5-Megapixel, 1/2.86-inch sensor, the CV503-WP delivers ultra-crisp, clear progressive video up to 1920x1080p at 60fps and interlaced 1920x1080i at 60fps. The CV503-WP utilizes a flexible 10' (3m) weatherproof cable that carries video, control, and power to a full-sized 3G/HD-SDI (BNC) output, RS485 connection, and locking 12V power connector. The CV503's threaded M12 lens mount offers a wide range of prime lens options. The CV503-WP can capture detailed shots from impossible angles, while maintaining an ultra-discreet presence. Remote adjustment of a wide range of picture settings including white balance, red/blue, exposure, gain control, pedestal (blacks), white clip, gamma, and more are delivered via common RS485 (Visca) or OSD menu joystick. CV503-WP Applications: The CV503-WP is suitable for use in outdoor broadcast events and Pro AV workflows including live broadcast productions, sportscast, newscast, reality television, concerts, corporate, government, military, house of worship, and many more.
