RF Venue DFIND9

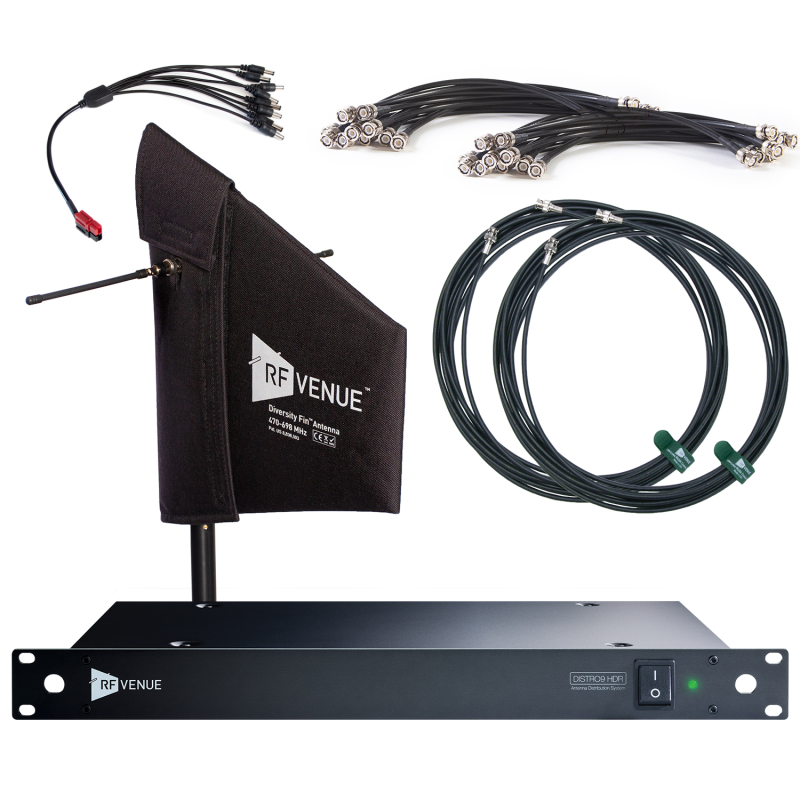

Diversity Fin Antenna, Coaxial Cabling, and DISTRO9 HDR Bundle Patented polarization diversity antenna system reduces signal dropouts High performance 9 channel multi-zone antenna distribution system Premium made in USA low loss double shielded coaxial cabling This turnkey bundle includes everything needed to configure up to 9 channels of wireless microphones: (1) Diversity Fin Antenna (DFIN) for Wireless Microphones, (1) DISTRO9-HDR 9 Channel RF Distributor, (2) RG8X25 Coaxial Cables BNC, (1) RG8X1.5-10 (10 pack interconnects), (1) RG8X2-10 (10 pack interconnects), (1) DC-OCTOPUS power cable for DISTRO9 About the Diversity Fin Antenna The patented Diversity Fin is a multi-purpose antenna for wireless microphones that reduces dropouts using a patented cross-polarized, hybrid design. It combines one LPDA and one dipole antenna in an orthogonal (right angle) configuration. One element captures vertically polarized waves, and the other horizontally polarized waves—doing the same job as two “shark fin” paddles while greatly improving RF and audio performance. The Diversity Fin has found widespread adoption across multiple pro audio segments for its performance, convenience, space, and cost benefits. From high profile live sound events, to film and TV productions, to routine installations in schools and churches, the Diversity Fin is the ideal all-purpose external antenna for diversity microphone systems of any brand. About the DISTRO9 HDR The DISTRO9 HDR represents a unique approach to high quality RF signal distribution for wireless microphones. The DISTRO9 saves time and rack space by offering 9 outputs and inputs for 2 zones in just one rack space. And each output is clean: DISTRO9 HDR employs low noise figure amplifiers and superior gain structure providing a high dynamic range over the spectrum. The DISTRO9 HDR makes multi zone installations easy by providing two zone antenna inputs, this allows for coverage of large areas or multiple rooms and has DC power available for in-line amplifiers or active antennas. It also provides DC power for up to 8 wireless microphone receivers with the included DC-OCTOPUS power cable. This eliminates the need for wall wart external power supplies and can save rack space. About RF Venue Coaxial Cables Coaxial cabling can make the difference between flawless RF performance and total system failure. Even the slightest crimp or ding in coaxial cable can cause signals to drop sharply or short out. RF Venue provides premium made in USA low loss, 50Ω RG8X coaxial cable with BNC male connectors for wireless audio applications. Our cables are custom made to our specifications: double shielded braid over foil with a perfect balance between loss and flexibility. All cables are terminated in-house and tested on calibrated Agilent network analyzers for guaranteed performance. RF Venue stocks a variety of lengths from 5' to 150'.
