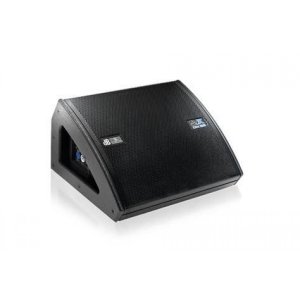

DVX Series2 x 8" Active Stage Monitor

The DVX DM28 excels at rendering speech and vocals. Users’ search for natural response, dynamic balance, and high SPL in a compact, inconspicuous package ends with this stage monitor.

The ultra low-profile enclosure sports two 8" RCF® neodymium woofers with large 2.5" voice coils that go about their business of rendering signals with impressive precision. In contrast to cabinets loaded with simple 8” speakers, the DVX DM28 packs a mighty low-midrange punch. What’s more, it responds far faster to transients in the signal, rendering each attack with awesome accuracy and power. Offering far greater dynamic range, it outperforms standard 12" systems by.

A combination of asymmetrical CD horn and precision-matched 1" RCF® neodymium compression driver efficiently couples high frequencies. The digipro® digital power amp featuring a PFC switched-mode power supply and the speakers are fine-tuned to minimize the risk of feedback, ensuring the DVX DM28 remains remarkably feedback resistant even at peak SPL. Made of rugged multiplex and coated with tough black lacquer, its light low-profile enclosure sets up at two different angles. The integrated controller acts as the enclosure’s controller, serving as an active equalizer, active x-over with phase and delay time alignment, and controlling the onboard limiter.
,
Speaker Type: 2-Way Active Speaker
Frequency Response [-10dB]: 60 - 20.000 Hz
Frequency Response [+/- 3dB]: 70 - 19.000 Hz
Max SPL: 130 dB
HF: 1 "
Type HF: RCF Neodymium Compression Driver
Voice Coil HF: Titanium 1.75 "
Directivity: 90x60/40 °
Horn: Aysmmterical
Rotatable Horn: No
LF: 2x8 "
Type LF: RCF Neodymium
Voice Coil LF: 2.5 "
Amp Technology: digipro
Amp Class: Class D
HF Amp: 250 W/RMS
LF Amp: 500 W/RMS
Cooling: Convection
Signal Input: XLR fem, sym.
Input Sensitivity [dBu]: -00 - max. -3 dBu
Signal Output : XLR male, sym
Power Socket: Powercon In/Out
Housing: Multiplex birch plywood
Housing Design: Low Profile Stage Monitor
Color: Black
Surface Texture: Textured acrylic lacquer
Handles: 1x per side
Pole Mount: No
Angles Up: 30, 60 °
Front Grille: 1,5mm metal backed with acoustic foam rubber
Width: 480 mm (19.2 in)
Height: 265 mm (10.6 in)
Depth: 418 mm (16.72 in)
Weight: 14 kg (30.86 lbs)
