Atlas Sound

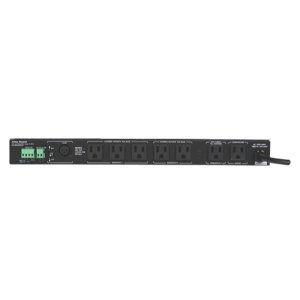

15A Power Sequencer and Conditioner

Model: ECS-3
UPC: 612079186303
Products Variants:
2 Front Panel and 1 Rear Panel Unswitched Convenience Outlets
6 Rear Panel Outlets are Sequenced in Three Stages
Circuit Breaker Protection @ 15 Amps Indicated By "Breaker Open" Indicator
Dual Clamping Spike & Surge Suppression, DCS Circuitry
External DCV Sequence Trigger Activation 5-24VDC
External Switch Sequence Trigger Activation
Extreme Voltage Shutdown (EVS) Below 102V or Above 132V AC Line
Front Mounted Pull-out LED Light with 2 Position Dimmer
Front Panel Digital AC Mains Voltmeter
Radio Frequency and Electromagnetic Interference Filters
Please log in to see your price

Related products

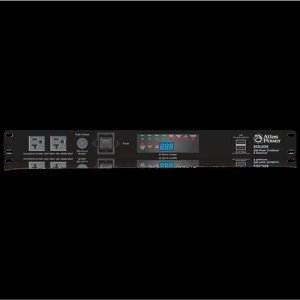

Model: ECS-204
Please log in to see your price
Model: M-8S
Please log in to see your price
Model: CN-20MP
Please log in to see your price
Model: CN-2400S
Please log in to see your price
Model: CN-1800S
Please log in to see your price
Model: CN-15MP
Please log in to see your price
Model: RS-2
Please log in to see your price
Model: ECS-6RM
Please log in to see your price

Customers who bought this product also purchased

Model: BSSBLU100M
Please log in to see your price
Model: IRACK
Please log in to see your price
Model: BSSBLU8V2-BLK-M
Please log in to see your price

Product Properties

  • Product Type
  • Power Management

Description:

The ECS-3 has been designed to meet most installation requirements for AC power distribution and equipment power protection. The 15A compact 1 RU unit features three sequential timing sections that can be activated via the unit, or remotely. Front panel activation is via a momentary switch, while rear activation is via a momentary contact closure, or by 5-24VDC trigger feed. AC Mains Voltage can be monitored via the front panel from the precision Digital Volt Meter. To light your rack, the ECS-3 has incorporated a front panel pull-out dimmable LED tube light. The rear of the rack can be illuminated by the optional 18" gooseneck LED lamp connected via an XLR style socket. LED lamps are far superior in longevity along with heat reduction when compared to traditional incandescent lamps and the XLR base mounts are also superior to the commonly used BNC type base. If a 15A AC Mains power source is not enough to meet the amperage demand of your system, the ECS-3 provides a sequenced 24VDC output that can be used to trigger other devices such as the Atlas Sound ECM-20SH 20A stand alone AC power module.

Current Rating: 15 Amps
Operating Voltage: 102-132VAC
Minimum Spike Clamping Voltage: 460 VRMS @ 3000A
Maximum Spike Clamping Voltage: 6000V
Power Consumption: 12 Watts
Height: 1.75" (44.5mm)
Width: 19" (482.6mm)
Depth: 8.5" (215.9mm)
Certifications: MET (UL 1449)
