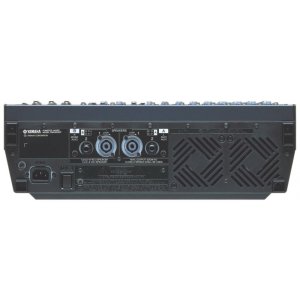

EMX Series 16ch Console-Style Powered Mixer

The EMX5016CF delivers the convenience of an integrated powered mixer with input capacity, flexible features, and solid sound that critical live sound applications demand. It is remarkably compact and portable for a live sound system with this much capability, but offers performance and reliability that will satisfy the discerning professional user either on the road or in installed applications. And thanks to leading Yamaha digital technology, the EMX5016CF also includes a number of innovations that make it easier than ever to achieve top-class sound in just about any venue. An impressive power output of 500 watts per channel means it can handle fairly large audiences, indoors or out. The EMX5016CF goes considerably beyond the standard definition of "powered mixer," entering the realm of serious sound reinforcement.

Versatile 16-Input Configuration Adapts to Varied Source Requirements
The EMX5016CF has a total of 16 input channels - eight for monaural microphone or line input plus four stereo pairs. The stereo channel pairs can function either as monaural microphone inputs or stereo line inputs. This system gives you extra microphone inputs if your sources are mostly microphones, or if you need to handle more stereo sources the EMX5016CF will comfortably handle four pairs in addition to eight monaural microphone or line inputs. Switchable phantom power is provided for all microphone inputs.

Advanced Channel EQ
3-band EQ is available on all input channels, but extra versatility is provided on the eight mono channels with mid-frequency sweep controls. The mid EQ center frequency can be continuously swept from 250 Hz through 5 kHz so you can precisely pinpoint frequencies in the critical midrange that require compensation, providing significantly enhanced equalization potential.

Ample I/O for Expansion and Integration
Insert patch points on the mono input channels, for example, let you add outboard signal processing to individual input channels. And although you have all the monitor power and effects you're likely to need built in, external AUX and EFFECT sends allow you to route the mixer's signals to external signal processing and/or monitor systems as required. Stereo out, stereo sub-out, and record outputs are also provided.

One-knob Compression On Mono Channels
The EMX5016CF features compressors on all monaural microphone/line channels that can help to make vocals ride the mix better, give you that smooth compressed guitar sound, deliver more punchy bass, and generally refine your mixes in a multitude of ways. These unique one-knob compressors are surprisingly simple to use. There are no multiple attack, threshold, makeup gain, and other controls ‐ just set the COMP control to the amount of compression you need.
