2414H compression driver
Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ

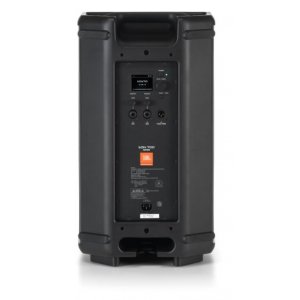

Audio I/Os: 2 XLR Combo, 1 XLR passthrough
Backlit color LCD screen provides easy access to functions
Bluetooth 5.0 streaming and control
Built-in 3-channel digital mixer
Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
Custom-designed 10-inch woofer
Dimensions: 23.11 x 13.07 x 11.81 in (587 x 332 x 300 mm) (HxWxD)
Dispersion: 110 degree H x 60 degree V

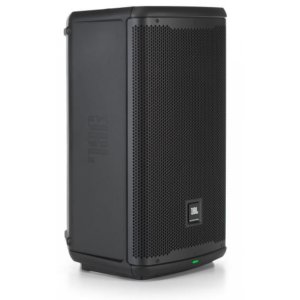

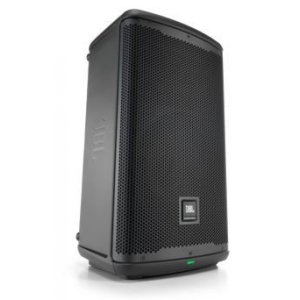

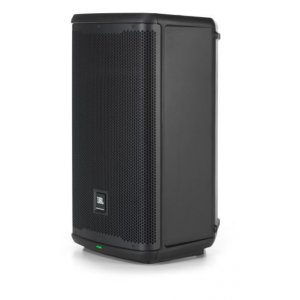

Durable talc-reinforced polypropylene cabinet and metal grille

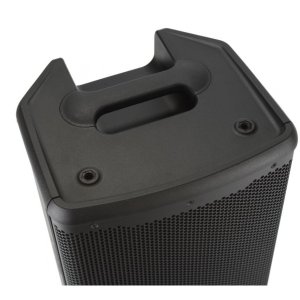

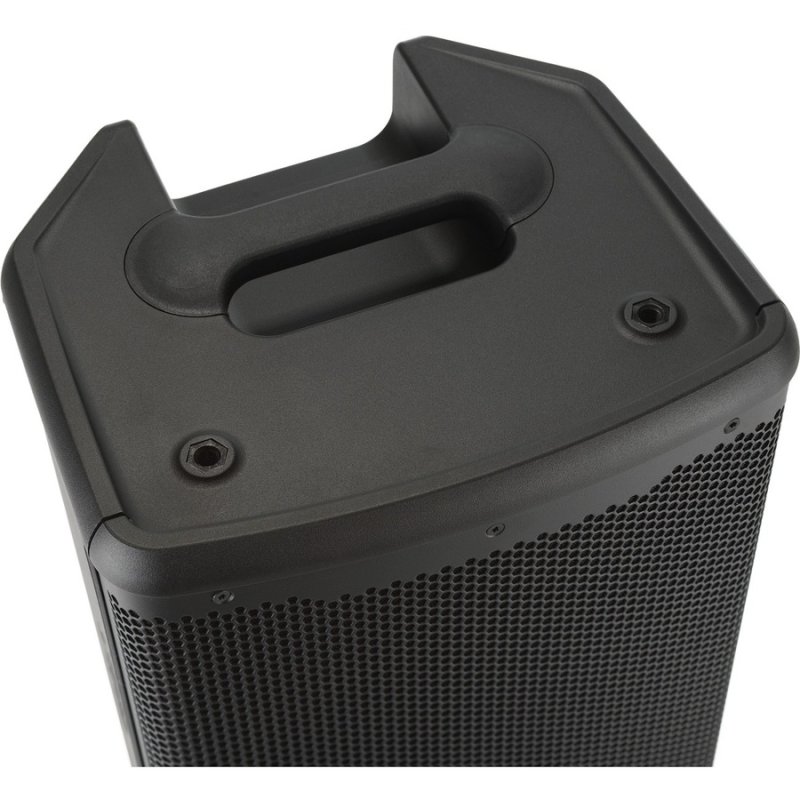

Ergonomic handle simplifies transport
Frequency response: 52 Hz-20 kHz (-10 dB); 65 Hz-20 kHz (-3 dB)
Max SPL: 125 dB
Power: 1,300W peak / 650W RMS
Redesigned high-frequency horn
Shipping dimensions: 24.72 x 17.63 x 16.37 in (628 x 448 x 416 mm) (HxWxD)
Shipping weight: 33.1 pounds (15 kg)
Stackable cabinets allow easy storage
Universal JBL Pro Connect app control
Weight: 26.2 pounds (11.9 kg)
