Sennheiser

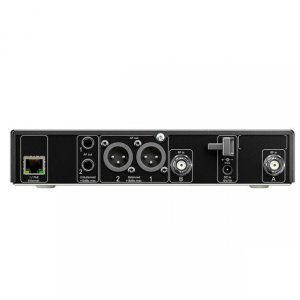

SENN EW-DX EM 2 (R1-9)

Brand: Sennheiser
Model: EW-DX EM 2 (R1-9)
UPC: 615104361461
134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
Ethernet connectivity (IPv4 and IPv6)
Extended menu settings such as custom frequency list, selectable sync parameter and walk test
External PSU 12V/1A
Link Quality Indicator (LQI) showing the quality of the links separate to the RF levels
Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in 2023) and 3rd party media control systems via plug-in
Power over Ethernet (PoE IEEE 802.3af Class 3)
Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in 2023)
Secure transmission of confidential content using AES 256 encryption
Selective headphone output with volume control on front panel
Two-channel digital half rack (9.5") in rugged metal housing
Up to 88 MHz switching bandwidth
Worldwide usage (specific frequencies subject to local RF regulations)
more
Please log in to see your price
Specification Sheet Specification Sheet
Specification Sheet (Download)

Related products

Customers who bought this product also purchased

PROVIDER PSE9-SENN
PROVIDER PSE9-SENN
Model: PSE9-SENN
Brand:Provider
Please log in to see your price
View

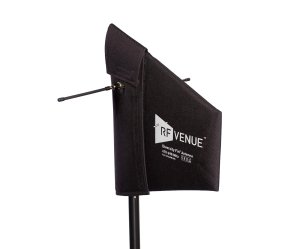

Diversity Fin™ Antenna
Diversity Fin™ Antenna
Model: DFIN
Brand:RF Venue
Please log in to see your price
View
e835 dynamic cardioid microphone module for G3, 20
e835 dynamic cardioid microphone module for G3, 20
Model: MMD 835-1 BK
Brand:Sennheiser
Please log in to see your price
View
SENN EW-DX SK (Q1-9)
SENN EW-DX SK (Q1-9)
Model: EW-DX SK (Q1-9)
Brand:Sennheiser
Please log in to see your price
View
Handheld wired dynamic mic
Handheld wired dynamic mic
Model: V7 MC2 BLACK
Brand:SE Electronics
Please log in to see your price
View

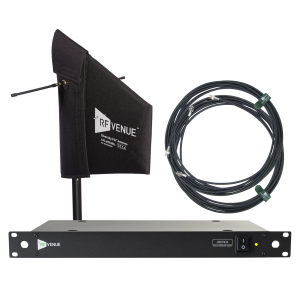

4 Channel Distributor and Antenna Package
4 Channel Distributor and Antenna Package
Model: DFINDISTRO4
Brand:RF Venue
Please log in to see your price
View

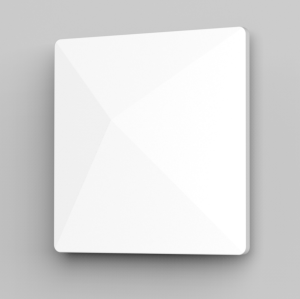

RFVENUE D-ARC
RFVENUE D-ARC
Model: D-ARC
Brand:RF Venue
Please log in to see your price
View
The MKE600 is a small shot gun microphone with a h
The MKE600 is a small shot gun microphone with a h
Model: MKE 600
Brand:Sennheiser
Please log in to see your price
View

Product Properties

  • Bullet points
  • 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
    AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
    Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
    Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
    Ethernet connectivity (IPv4 and IPv6)
    Extended menu settings such as custom frequency list, selectable sync parameter and walk test
    External PSU 12V/1A
    Link Quality Indicator (LQI) showing the quality of the links separate to the RF levels
    Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
    Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in 2023) and 3rd party media control systems via plug-in
    Power over Ethernet (PoE IEEE 802.3af Class 3)
    Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in 2023)
    Secure transmission of confidential content using AES 256 encryption
    Selective headphone output with volume control on front panel
    Two-channel digital half rack (9.5") in rugged metal housing
    Up to 88 MHz switching bandwidth
    Worldwide usage (specific frequencies subject to local RF regulations)

Description:

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. AutoScan quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely.
