Sennheiser

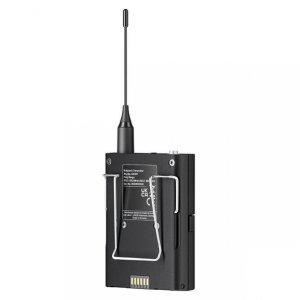

SENN EW-DX SK (R1-9)

Brand: Sennheiser
Model: EW-DX SK (R1-9)
UPC: 615104362109
10mW fixed RF power for up to 100 m/328 ft of range
134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
Charging contacts for in-device charging with CHG 70N charger (sold separately)
Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connection
Digital audio trim
Function buttons - control all the transmitter settings directly from bodypack including button lock function
Instrument input with cable emulation to simulate cable characteristics
Metal housing
Mic input trim control
Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.
Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
Programmable mute switch - RF mute, AF mute or disabled
Switchable LED configuration (On/Off)
Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
Test tone generator
Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)
Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
Worldwide usage (specific frequencies subject to local RF regulations)
more
Please log in to see your price
Specification Sheet Specification Sheet
Specification Sheet (Download)
