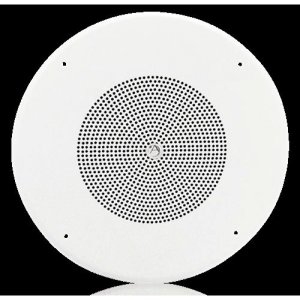

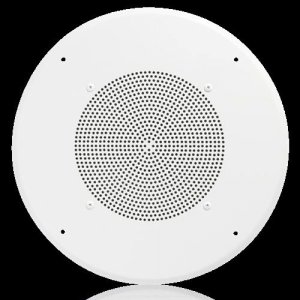

Pre-Assembled Baffle, 10 oz Loudspeaker w/ 4W Transformer

Model HD72W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation.

The HD72W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

The HD72W includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100 Hz to 10 kHz. Speaker / transformer is factory installed on a 62-8 style baffle.

Depth: 2 7/8" (7.3025 cm)
Diameter: 8" (20.32 cm)
Shipping Weight: 4.50 lbs (2.04 kgs)
Frequency Response: 100 Hz - 10 kHz, ± 1.5dB
Power Taps: 25/70.7V
Speaker Type: Treated Paper
Dispersion: 105°
Sensitivity: 97dB Peak, 94dB Average
