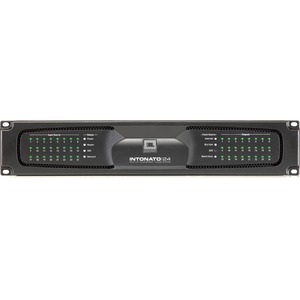

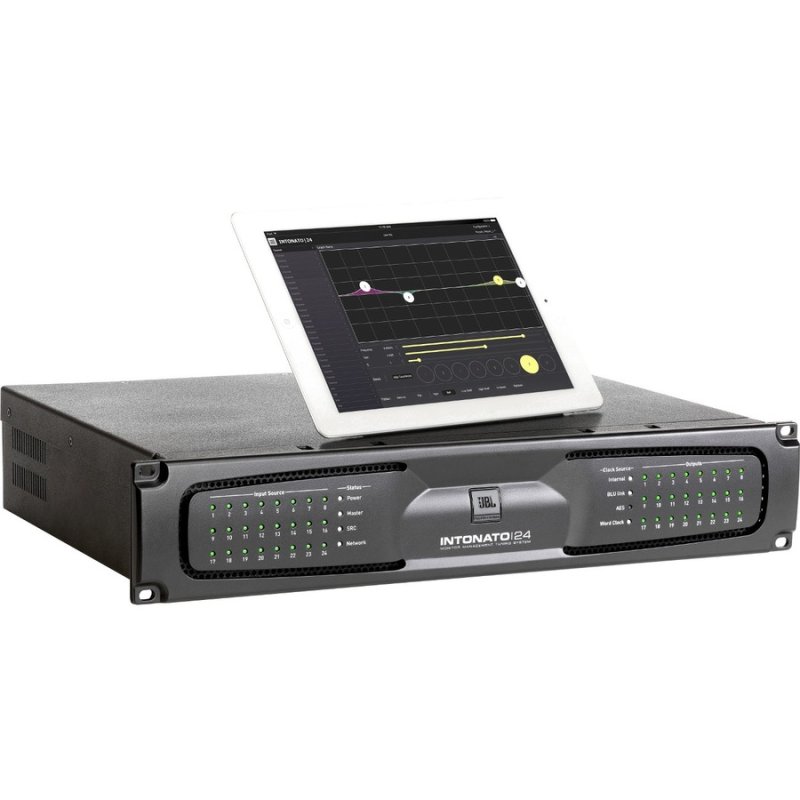

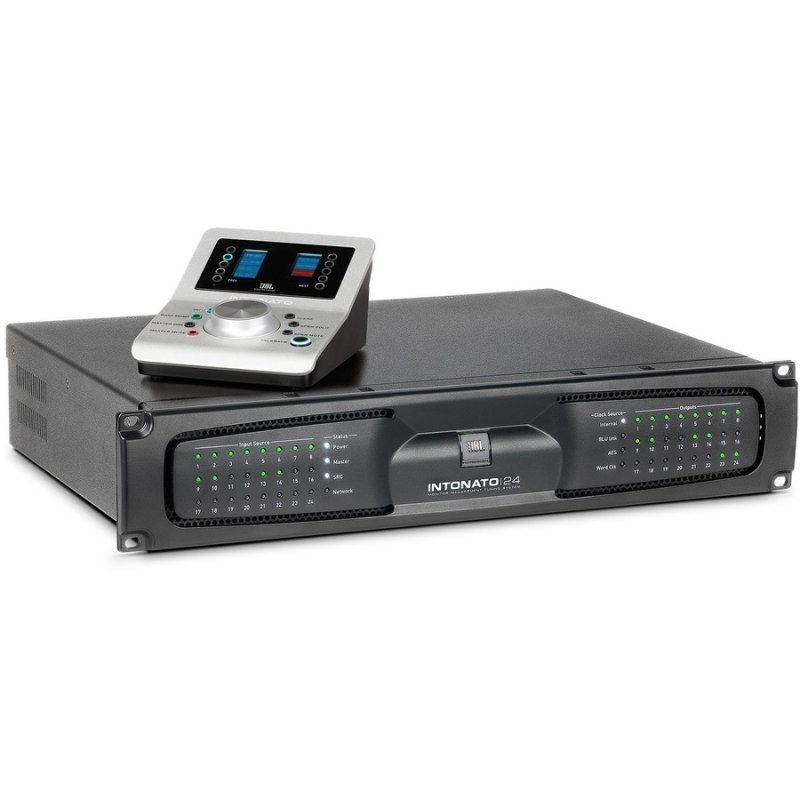

JBL INTONATO24FX

Compatible with all professional studio monitors

Input connections for 24 analog, AES /EBU Inputs; up to 256 channels of networked audio in HARMAN BLU link or Dante format (with optional BLUDAN interface)

Software-controlled analog input sensitivity switches, level indicators and gain trims

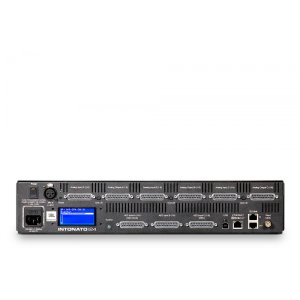

Output connections include 24 analog outputs to powered speakers and power amplifiers; BLU link output allows networked connection to HARMAN Crown power amplifiers

Selectively monitor via one or more monitoring systems of up to 24 speakers

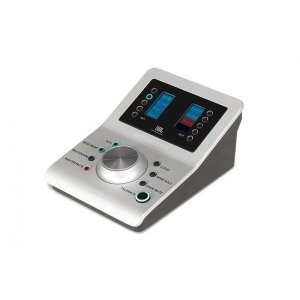

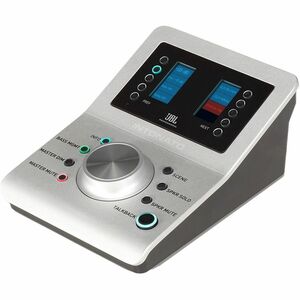

Volume, Mute, and Dim controls, plus individual speaker Mute and Solo

Automated Speaker Calibration with included microphone precisely balances, tunes and aligns all speakers to deliver greater accuracy to the mix position in any room; 12 bands of Room EQ, Delay, Level per speaker

Per-speaker, 8-Band User EQ allows standard and customized response curves such as X-Curve and compensation for perforated screen transmission loss

Sophisticated subwoofer integration for LFE channels and bass management

Variable Audio/Video Sync delay allows compensation for video display latency
