SoundTube Entertainment

IPD-SM52-EZ-WX-WH

Model: IPD-SM52-EZ-WX-WH
UPC: 644216231805
Color White
UPC 644216231805
Manufacturer SoundTube
Manufacturer's Category STNet IP-Addressable and Dante Series
Depth 6.63 in / 168.4 mm
Height 11.88 in / 301.75 mm
Width/Diameter 7.5 in / 190.5 mm
Shipping Weight 7.8 lbs / 3.54 kg
Carton Height 12 in / 304.8 mm
Carton Length 15 in / 381 mm
Carton Width 10.5 in / 266.7 mm
Certifications CE, IP65, RoHS, UL60065
Enclosure Properties High Impact Polystyrene
Included Accessories Mounting Hardware, Port Plug, Safety Cable
Source Inputs RJ45 Ethernet Port
IP Rating IP65
TAA Compliant (Trade America) No
BAA Compliant (Made in USA) No
Coverage Angle (±6dB @ 2kHz) 91° Horizontal / 120° Vertical
Crossover Frequency 3.5 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 6.9 and 5.9
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.2 and 7.7
Frequency Response (± 10 dB) 55 Hz - 20 kHz | Sealed: 62 Hz - 20 kHz
Frequency Response (± 3 dB) 65 Hz - 20 kHz | Sealed: 80 Hz - 20 kHz
Grille Properties Aluminum, Powder-Coated, White
Low Frequency Voice Coil 25.4 mm (1") high temperature Kapton
Max SPL @ 1M 97 dB
Tweeter Driver 1" Soft Dome
Woofer Driver 5.25" Polypropylene Cone w/ Butyl Rubber Surround
5.25" Coax Weather Extreme - D
Please log in to see your price

Related products

Model: IPD-SM52-EZ-WH
Please log in to see your price
List Price: $505.00
Model: IPD-RS62-EZ-WH
Please log in to see your price
List Price: $610.00
Model: IPD-SM82-EZ-II-WH
Please log in to see your price
List Price: $665.00
Model: IPD-RS82-EZ-WH
Please log in to see your price
List Price: $715.00

Customers who bought this product also purchased

Product Properties

Description:

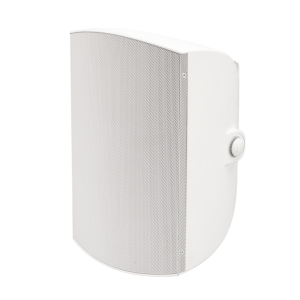

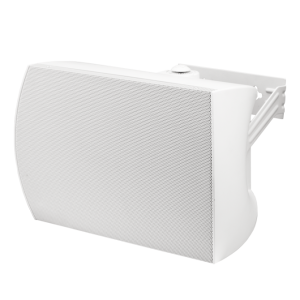

The IPD-SM52-EZ-WX is a Dante-enabled, weather resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 5.25 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating: IP65. Included accessories: Safety cable, wall mount bracket, conduit connector, and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.

*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use. Also: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II).
