Ashly

KLR Series 5kW 2-Channel High Performance Amplifier

Brand: Ashly
Model: KLR-5000
UPC: 8806326607419
Products Variants:
3-position gain switch (1V, 32dB or 26dB sensitivity)
3-position HPF switch (30Hz, 50Hz or off)
3-position mode switch (bridged, stereo or parallel mono)
Balanced inputs via 3-pin Euroblock and combo XLR/ 1/4" TRS
Extensive protection circuitry
Forced air cooled (front in, rear out)
Front mounted attenuators
Front panel indicators for output level, clip/protect, and power on/off
Gain selectable switch for both channels
Neutrik Speakon output connectors
On/off limiter switch
Permanently attached power cord
Rack ears for permanent installation in a standard 2RU enclosure
Removable dust filters
Safety/Compliance: cCSAus, FCC, CE, RoHS
Switch mode power supply provides high efficiency and low weight
Please log in to see your price

Related products

Model: XLI2500
Please log in to see your price
Model: XLI1500
Please log in to see your price
Model: XLS1002
Please log in to see your price
Model: XLI3500
Please log in to see your price
Model: XLI800
Please log in to see your price

Customers who bought this product also purchased

Model: SS7322B
Please log in to see your price
Model: AS420V2
Please log in to see your price
Model: BETA 58A
Please log in to see your price
Model: AUDIOBOX USB 96 25TH
Please log in to see your price
Model: EW-D 835-S SET (R1-6
Please log in to see your price
Model: M-8S
Please log in to see your price
Model: THRASH212
Please log in to see your price

Product Properties

Description:

Ashly's KLR-Series amplifiers are high-efficiency, lightweight, two-channel, high power amplifiers incorporating the latest technologies delivering quality and value for professional performance at an extremely affordable price. Whether your application is professional audio or fixed performance installation, KLR amplifiers are optimized to provide reliable audio performance with sonic perfection.

Covering a power range from 1000 to 2500 watts per channel at 2 ohms (20Hz-20kHz, 1% THD), the KLR-2000, KLR-3200, KLR-4000, and KLR-5000 are perfectly suited for a wide range of sound reinforcement. All four KLR amplifiers are optimized to deliver high levels of sustained power, extraordinary audio performance, and road-proven reliability into 2, 4, or 8 ohm loads and are housed in a a uniform, rugged, 2RU chassis. Each KLR amplifier uses a state-of-the-art Switch Mode Power Supply, which assures you of flawless lows, punchy mids, and pristine highs. The output topography of the KLR-2000 is Class-AB, while the KLR-3200, KLR-4000, and KLR-5000 are a two-step Class-H design. KLR-Series protection circuits include: output over-current protection, DC output protection, chassis internal temperature monitoring, inrush limiting, and a mains circuit breaker.

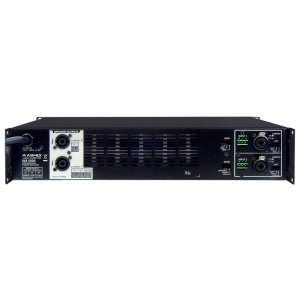

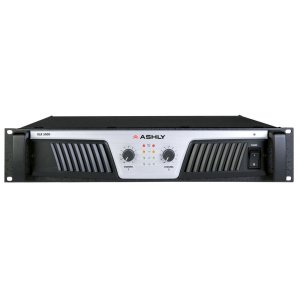

Front panel features include: individual input attenuators, signal, clip, and protect LEDs, air inflow vents with removable dust filters, power switch, and power LED. Rear panel features include: balanced inputs via 3-pin Euroblock, combo XLR/ 1/4" TRS connectors, Neutrik Speakon output connectors, 3-position gain switch (32dB, 26dB, or 1V input sensitivity), 3-position mode switch (bridged, stereo, or parallel mono), 3-position HPF switch (30Hz, 50Hz, or off), on/off limiter switch, air outflow vents, and permanently attached power cord.

Rated Power 8 ohms (per channel): 1000W
Rated Power 4 ohms (per channel): 1700W
Rated Power 2 ohms (per channel): 2500W
Rated Power 4 ohms (Bridged): 5000W
Connectors (each channel): Input - Euroblock, XLR, Output - Neutrik Speakon
