3 Mic/Line inputs
70V/25V/4 Ohm/8 Ohm, 35 Watts
2U Rack-mountable with optional RK-M3565

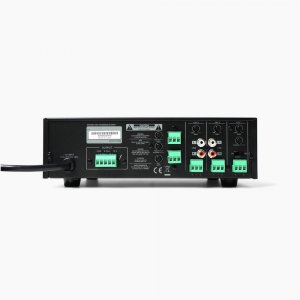

- CH1 - Mic/Line on Phoenix terminal
- CH2 - Mic on Phoenix terminal - Line on RCA
- CH3 - Mic on Phoenix terminal - Line on RCA

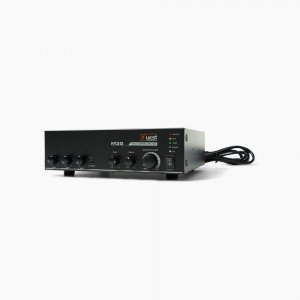

- CH3 - 3.5mm Aux on front panel
Phantom Power support for primary mic
(1) TELE-PAGING input, and (1) MOH/LINE OUT on 3-prongs Phoenix terminals
Speaker outputs on 5-prongs Phoenix Terminals
Power, Signal, -20dB, Clip and Protect Indicators
Output Current Limiting, Thermal Protection & DC Offset protection
