TASCAM ML-16D

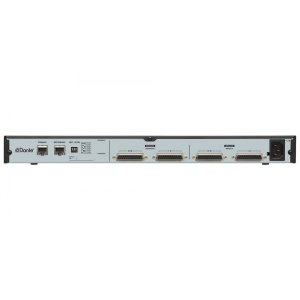

The TASCAM ML-16D makes it possible to transmit 16-channel analog line input/output signals Primary and Secondary network connections redundancy and security Primary and secondary connectors enable building a redundant system with a duplex network. Should the primary network route fails the ML-16D automatically switches to the secondary network route. This highly secure system prevents interruption and introduces no noise during the switch. Flexible routing to connected Dante-compatible devices The ML-16D uses Dante Controller to configure the main unit and to connect to other Dante-compatible devices. Dante Controller enables flexible routing configuration to other Dante-compatible devices. Dante Controller Routing windowDante Controller Device Config. window Possible to interconnect with AES67 and Ravenna systems Dante supports AES67, which enables audio connection with systems using AES67 and AES67-compatible protocols including Ravenna. Integrated Signal/Overload indicator The front panel is equipped with a signal/overload indicator that enables monitoring of analog input/output signals. The signal indicator turns on when a signal level becomes lower than –60dBFs. 5 selectable reference levels which can accommodate to a variety of scenes The TASCAM ML-16D features selectable reference level setting from 5 maximum level options: +24dBu, +22dBu, +20dBu, and +18dBu (the standard level is +4dBu) and +15dBu (the standard level is +6dBu), which can accommodate to a variety of purposes including professional use in broadcasting studios, public address systems and recording environments. Flexible choice of connectors according to purposes ML-16D is equipped with D-sub 25-pin connectors as analog line input/output connectors, and combining with optional breakout boxes enables conversion to Euro Block and XLR.
