All-In-One Mixing Studio

16-track multi-track recorder (WAV, up to 48kHz/24-bit) to SD, SDHC and SDXC cards (Class 10 or higher required)

Punch in/out capability (up to 8 tracks simultaneously)

Built-in USB Audio Interface to send/receive (16-in/14-out) audio data to/from DAW

14 inputs (10 Monaural XLR/TRS balanced and 2 Stereo-paired TRS balanced)

10 mic Pre-amps utilizing TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 8)

Pre-amp Gain Controller with Signal/Over-load Indicator (CH 1 thru 12)

Input Mode switch (LIVE/USB/MTR) per input channel

1-knob compressor (CH 1 thru 8)

3-band EQ with a sweep-able mid-range frequency (CH 1 thru 8)

100Hz Low-cut Filter (CH 1 thru 12)

Phantom Power (+48V) for all XLR inputs

3 AUX Outputs (MON 1[pre], MON 2[pre/post], FX[post])

Mute, MAIN/SUB, PLF switches per input channel

Bluetooth® 5.0 input supporting both AAC and SBC codecs

LINE Inputs via RCA Pin and 1/8" Stereo Mini jacks (CH 13/14)

Hi/Lo shelf, wide and narrow-Q semi-parametric EQs (for Main and SUB outputs)

16 TASCAM Effects like reverb, delay, chorus and flange

MAIN Output via XLR balanced and SUB Output via TRS balanced connectors

12-segment LED Output Level Meters

1 Stereo Output for Control Room

1/4" Stereo Headphone Output

REMOTE connector for a Foot Switch (TASCAM RC-1F)

Self-emitted buttons for key operations such as REC and Play for better status legibility

Comprehensive simplified menu tree

Multi Jog-dial for quick menu operation

19-inch rack mountable with optional Model 16 rackmount kit

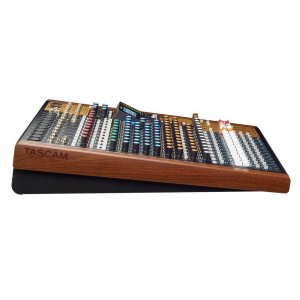

FAUX wood Side Panels (Removable)
