Shure

Microflex Series Overhead Gooseneck (Black, Cardioid, Plate-Mounted Preamp)

Brand: Shure
Model: MX202BP/C
UPC: 042406051613
Products Variants:
Accurate sound reproduction with minimum RF interference or electromagnetic hum
Balanced, transformerless output for increased immunity to noise over long cable runs
Interchangeable cartridges that provide an optimal polar pattern choice for each application
Plate-mounted preamp for easy ceiling installation
Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Model: MX202B/MS
Please log in to see your price
Model: MX202W-A/S
Please log in to see your price
Model: MX202WP-A/MS
Please log in to see your price

Customers who bought this product also purchased

Model: SI IMPACT CONSOLE
Please log in to see your price

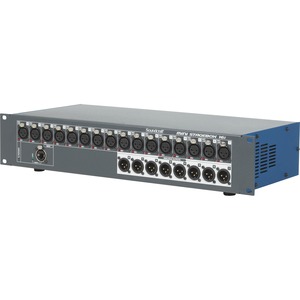

Model: MINI STAGEBOX 16I US
Please log in to see your price
Model: 5031819.V
Please log in to see your price

Product Properties

  • Product Type
  • Hanging Microphone

Description:

MX202 Microflex�Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid or supercardioid condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable.

Frequency Response
50 to 17,000 Hz

Output Impedance
180 ohms actual (EIA rated at 150 ohms)

Sensitivity (At 1,000 Hz, open circuit voltage*)
Cardioid: -35.0 dBV/Pa (17.8 mV)
All values -12 dB at 0 gain; *1 Pascal = 94 dB SPL

Maximum SPL (1 kHz at 1% THD, 1 k ohm load)
Cardioid: 124.2 dB
All values +6 dB at 0 gain

Equivalent Output Noise (A-weighted)
Cardioid: 28.0 dB SPL

Signal to Noise Ratio (referenced at 94 dB SPL)
Cardioid: 66.0 dB

Dynamic Range at 1 k ohm load
96.2 dB
100 dB at 0 gain

Common Mode Rejection
45.0 dB minimum

Preamplifier Output Clipping Level (1% THD)
-6.0 dBV (0.5 V)
-12 dBV at 0 gain

Polarity
Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.

Power Requirements
11 to 52 Vdc phantom, 2.0 mA

Environmental Requirements
Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
Relative Humidity: 0 to 95%
