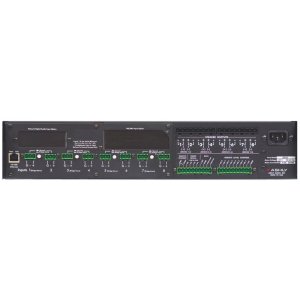

Network Enabled 8-Channel Amplifier

Connecting and controlling an amplifier for networked systems has now been simplified with Ashly’s NE Series amplifiers. Network Enabled (NE) amplifiers offer ease of use, setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed.

Eight, eight-channel models with output power at 250W are available to fill a wide variety of low impedance, 25V, 70V and 100V performance installation or constant voltage applications.

Each amplifier also provides DC voltage control of the attenuators which makes it a snap to control volume from remote locations, preset recall, Remote Power Standby and data in and out ports for connecting accessories like the WR-5 to control user selected parameters. There are LED indicators for power, standby, protect, network communications and each channel has a four-step signal meter, bridge mono, temperature and current indicators.

Rated Power 8 ohms (per channel): 150W
Rated Power 4 ohms (per channel): 250W
Rated Power 8 ohms (Bridged): 500W
Connectors (each channel): Input - Euroblock, Output - Euroblock
