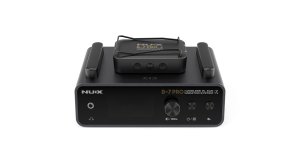

NUX B-7 Pro Stereo Wireless In-Ear Monitor System

Brand: NUX
Model: TMP-B-7-PRO

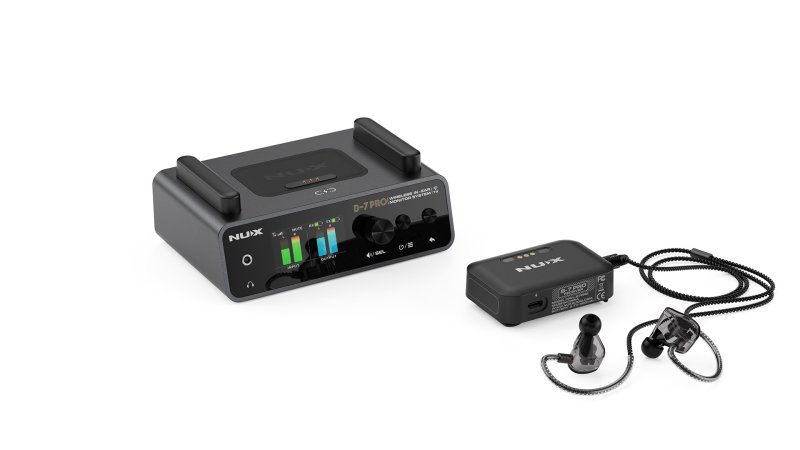

The B-7 Pro Stereo Wireless In-Ear Monitor System is a professional-grade wirelss solution from NUX's Pro Series, designed for connecting to the Aux output or main output of a mixer or audio interface, or to the headphone output of a multi-channel digital personal mier used in live performances. It enables stereo wireless monitoring, making it ideal for bands or solo performers during rehearsals, live shows, and live streaming for monitoring purposes.
Please log in to see your price

Related products

Customers who bought this product also purchased

Product Properties

Description:

  • Operating Frequency Band: 2400–2483.5 MHz
  • Transmit Mode: Frequency Hopping
  • RF Output Power: 10 mW E.I.R.P. (max)
  • Audio Quality: 24-bit / 48 kHz
  • Frequency Response: 20 Hz – 20 kHz
  • Latency: 7.33 ms (Low Latency Setting) / 10.85 ms (Default) / 14.33 ms (Safe Setting)
  • Unbalanced Input Impedance: 10 kΩ
  • Balanced Input Impedance: 20 kΩ
  • AUX Input Level: 2.1 Vrms (8.7 dBu max)
  • Balanced Input Level: 9.8 Vrms (22 dBu max)
  • Headphone Output Impedance: ≥13 Ω
  • Headphone Maximum Output Power (per channel): 57 mW (THD < 0.1%, Rload = 16 Ω, 1 kHz)
  • Channel Separation: -105 dB
  • THD+N: <0.01% (typical)
  • Dynamic Range: 110 dB (A-weighted)
  • Output Level Adjustment Range: Mute –86 dB ~ +12 dB
  • Auto-Off: Automatically turns off after 10 minutes of no connection or lost connection
  • Built-in Battery Capacity: Rechargeable Li-polymer
  • Transmitter: 3.7 V / 3000 mAh
  • Receiver: 3.7 V / 400 mAh
  • Battery Lifetime: TX: Up to 6 hours|RX: Up to 6 hours
  • Power Requirements: DC 9 V, 1 A (min), negative tip (Transmitter)
  • Operation Range: Up to 50 m (165 feet max)
  • TX Dimensions: 140 (L) × 97 (W) × 53 (H) mm
  • TX Weight: 525 g
  • RX Dimensions: 47 (L) × 71 (W) × 22 (H) mm
  • RX Weight: 51 g
