NUX B-8 2.4GHz Guitar Wireless System

Brand: NUX
Model: TMP-B8
UPC: 885947105236

The B-8 Guitar Wireless System is a professional-grade solution in NUX’s Pro Series. Built on our third-generation platform, it combines anti-interference tech, intelligent frequency hopping, 1MHz narrowband transmission, Audio Zip/Unzip, six stability levels, and a true-diversity dual-antenna design for rock-solid, reliable signal. The latest firmware further improves wireless performance with better transmission efficiency and stronger interference resistance.

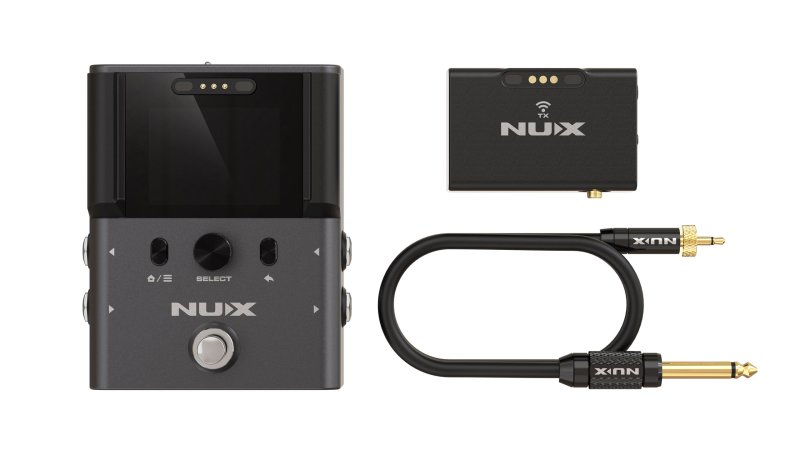

Designed for guitars, basses, and any instrument with a 1/4″ output, the system pairs a beltpack transmitter with a multifunction pedal receiver. It operates at 2.4 GHz, supports auto-pairing, delivers 24-bit/48 kHz audio, achieves latency down to 2.5 ms, and reaches up to 165 ft (50 m) line-of-sight. The transmitter’s built-in lithium battery provides up to 6.5 hours of runtime! Enough for rehearsals, sessions, and gigs.

Please log in to see your price

Related products

Customers who bought this product also purchased

Model: XCG-4
Please log in to see your price
List Price: $29.99
Model: SM7122BB
Please log in to see your price
List Price: $39.99
Model: MS7701B
Please log in to see your price
List Price: $61.99
Model: DS7200B
Please log in to see your price
List Price: $36.99
Model: KS7190
Please log in to see your price
List Price: $58.99
Model: MSA9030-13B
Please log in to see your price
List Price: $19.99
Model: IC-10
Please log in to see your price
List Price: $17.99
Model: MSA9030-19B
Please log in to see your price
List Price: $23.99

Product Properties

Description:

  • Operating Frequency Band: 2400-2483.5 MHz
  • Transmission Power: <10 mW EIRP
  • Audio Quality: 24 bit/48 kHz
  • Frequency Response: 20 Hz-20 kHz
  • Latency: 2.5 ms (best performance setting)-8.7 ms (safety mode)
  • Input Impedance: 1 MΩ
  • Maximum Input Level: 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)
  • THD+N: 0.01% 1 kHz, typical
  • Dynamic Range: 122 dB, A-weighted (OUTPUT/SEND)
  • Output level Adjustment Range: mute -64 dB~0 dB
  • Auto-sleep Mode: N/A
  • Built-in Battery Capacity: 3.7 V/500 mAh Rechargeable Li-polymer (Transmitter)
  • TX Battery Life: up to 6.5 hours
  • Power Requirements: 7 V to 12 V DC, 500 mA min, negative tip power supplies (Receiver)
  • Operation Range: Up to 50 m (165 feet) maximum
  • TX dimesions: 72.5 (L) x 49.3 (W) x 23 (H) mm
  • TX weight: 63 g
  • RX dimensions: 122 (L) x 95 (W) x 60 (H) mm
  • RX weight: 500 g
