4 x 4000W Powered TDcontroller

The NXAMP 4X1 and 4X4 Powered TDControllers are based on an innovative design that will provide the full integration of speaker and amplifier control with output capacities that will allow end users a cost-effective solution.

The innovative control structure implemented into the NXAMP is via the latest generation of NEXO’s TDcontrollers. This full integration of control will provide a safety base and real-time performance that is the first of its kind, having all the parameters controlled by the DSP. This real-time control will offer end users the ability to manage the voltage/current/temperature sense lines from the amplifier's output, protecting both the amplifier and its power supply in real time, while simultaneously offering all control parameters required for the speakers.

4 x 1900W (8?) / 4 x 4000W (2?, UL approved). Power amplifier with integrated NX processor to drive NEXO products.

Yamaha’s EEEngine Technology.

Onboard Dual DSP processors: 24-bit data with 48-bit accumulator. 700 MIPS.

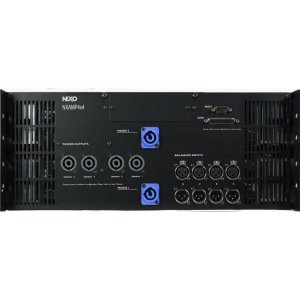

Rear panel has 1 main socket: AC cables go to
2 x L5-30 plugs for AC power

RS-232 serial communication port for firmware updates.

GPIO port for simple remote control and monitoring.

Expansion slot for networking audio extension card.

4 XLR inputs with link.

4 Speakon™ / 4 Outputs.

Updateable firmware.

4U Rackspace
